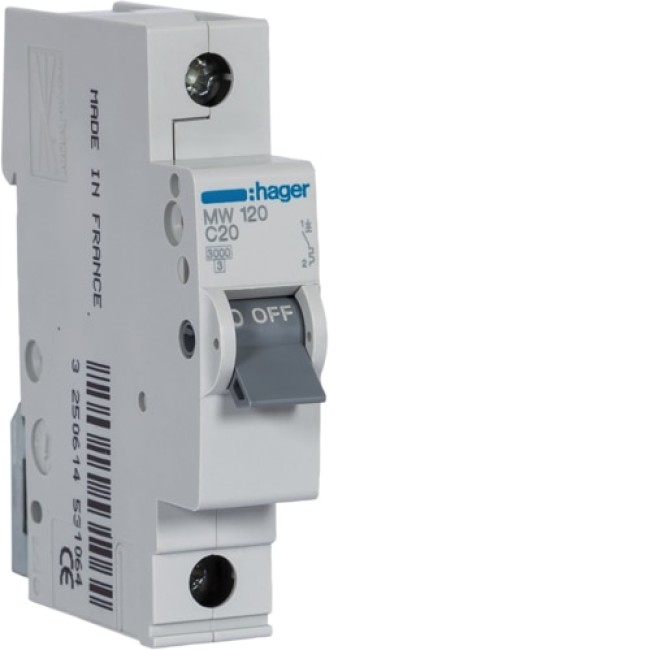

Hager MCB 1P 3kA C-20A 1M - MW120

Description for Hager MCB 1P 3kA C-20A 1M - MW120

The Hager MCB 1P 3kA C-20A 1M - MW120 is a high-performance miniature circuit breaker designed for dependable circuit protection in AC power systems. It features a rated current of 20A, a breaking capacity of 3kA, and a compact 1-module width, making it ideal for various residential and commercial installations. Built to EN 60898-1 standards, this MCB ensures durability, efficiency, and safety under diverse environmental conditions.

Key Features:

• Voltage Range: Operates at 230/400 V AC with a maximum voltage of 415 V.
• Rated Current: 20A with precise thermal and magnetic trip thresholds.
• Breaking Capacity: 3kA at 230V/400V AC, compliant with EN 60898-1 standards.
• Temperature Performance: Reliable operation in temperatures from -25°C to 70°C with detailed current correction factors for various conditions.
• Durability: Electrical endurance of 4000 cycles and mechanical endurance of 20,000 operations.
• Compact Design: Slim 1-module width with 70mm depth and 83mm height.
• Efficient Connections: Screw terminals supporting flexible cables up to 25 mm² and rigid cables up to 35 mm².
• Energy Efficiency: Total power loss of 2.1W under rated current for optimal energy use.

Additional Details:

• Frequency Range: 50–60 Hz.
• Impulse Withstand Voltage: Rated at 4000V for enhanced safety.
• Energy Limitation Class: Class 3 for superior energy dissipation.
• Compliance: Meets EN 60898-1 standards for performance and safety.
