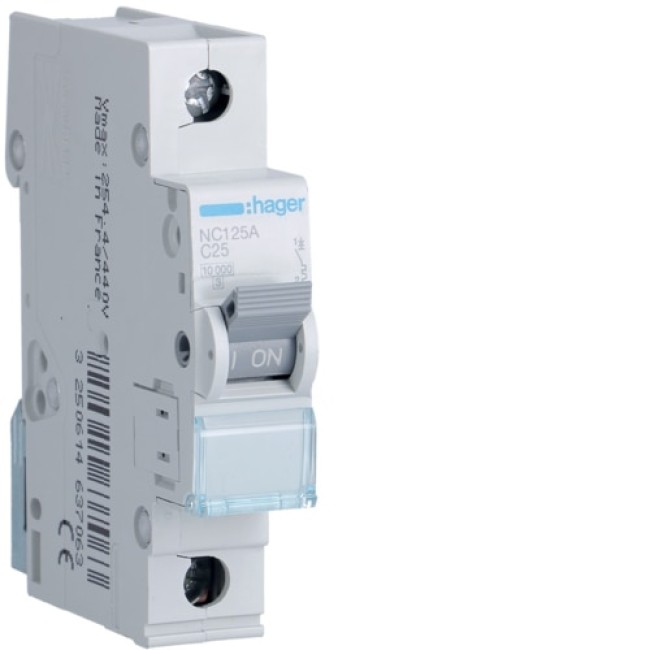

Hager MCB 1P 10kA C-25A 1M - NC125A

Description for Hager MCB 1P 10kA C-25A 1M - NC125A

The Hager MCB 1P 10kA C-25A 1M - NC125A is a high-performance miniature circuit breaker designed for reliable protection in both residential and commercial applications. With a rated current of 25A and a short circuit breaking capacity of 10kA, this MCB ensures superior protection against overloads and short circuits. It is designed to operate efficiently under 230/400V AC and provides thermal-magnetic protection for optimal performance in a wide range of environments.

Built in compliance with IEC 60898-1 and IEC 60947-2 standards, this MCB features a compact design and is easy to install, offering excellent safety for electrical circuits. The Hager MCB 1P is equipped with a C curve, making it ideal for protecting circuits with moderate inrush currents. With a robust construction, it can withstand up to 10kA breaking capacity, making it highly reliable in demanding applications.

Key Features:

• Rated Current: 25A
• Short Circuit Breaking Capacity: 10kA (AC)
• Rated Operational Voltage: 230V / 400V AC
• Rated Insulation Voltage: 500V
• Rated Impulse Withstand Voltage: 4000V
• Magnetic Tripping Range: 5 / 10 In (AC)
• Thermal Operation Range: 1.13 / 1.45 In
• Rated Service Breaking Capacity Ics: 7.5kA
• Endurance: 20,000 mechanical operations, 4,000 electrical cycles
• Temperature Rating: -25°C to 70°C operating temperature range
• Mounting Type: Clip-on with screw connection
• Standards Compliant: EN 60898-1, IEC 60947-2
• Dimensions: 83mm (H) x 17.5mm (W) x 70mm (D)
• Environment: RoHS compliant, non-halogenated

This Hager MCB 1P is ideal for residential, industrial, and commercial electrical applications, offering excellent protection against short circuits and overloads. Its high-end features make it the perfect solution for electrical installations that require enhanced safety and efficiency.
