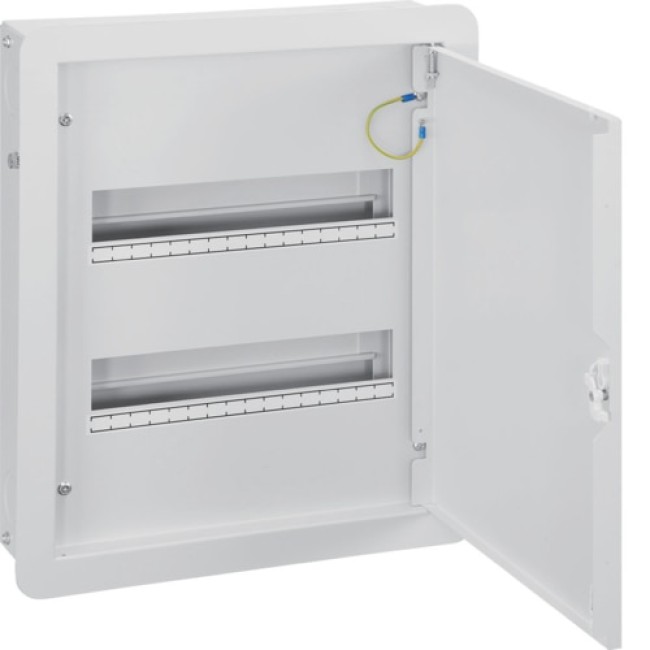

Hager DIN Rail Board, 2 Row 32M, Non-Transparent Door, Flush - DR32F

Description for Hager DIN Rail Board, 2 Row 32M, Non-Transparent Door, Flush - DR32F

The Hager DIN Rail Board - DR32F is a robust and versatile solution for managing electrical circuits in residential and commercial settings. With 2 rows accommodating up to 32 modules, this flush-mounted enclosure ensures organized and efficient installation. Its durable steel construction and non-transparent, plain door provide reliable protection while maintaining a professional appearance.

Compliant with BS EN 61439-3, the DR32F ensures safety and durability, meeting the demands of modern electrical installations.

Key Features:

• Architecture & Configuration:
  • Two-row design with a 32-module capacity
  • Left-hinged, single plain door for easy access
• Dimensions:
  • Installed height: 499 mm
  • Installed width: 430 mm
  • Built-in width: 400 mm
  • Depth of wall niche: 105 mm
  • Insertion depth: 110 mm
• Material & Finish:
  • High-quality steel construction with 1.2 mm sidewall and cover thickness
  • Matte light grey finish for a sleek and durable look
• Cover & Door:
  • Closed, plain design (non-transparent)
  • No interlock or keylock features
• Electrical Features:
  • Includes a neutral terminal block
  • Compatible with lightning protection systems
  • Can be accessorized and extended with flange plates
• Safety & Compliance:
  • IK05 impact protection rating
  • Complies with BS EN 61439-3 and IEC 61439-1 standards
  • REACH and RoHS compliant
• Environment & Installation:
  • Indoor use only (not suitable for outdoor or ground mounting)
  • Flush mounting for seamless integration
  • Extension possible for enhanced flexibility
