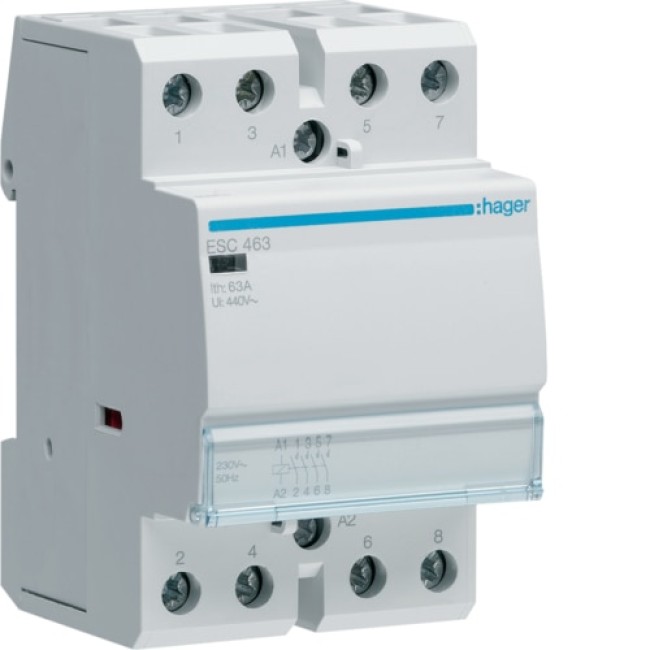

Hager Contactor 63A, 4NO, 230V~50Hz - ESC463

Description for Hager Contactor 63A, 4NO, 230V~50Hz - ESC463

The Hager ESC463 Contactor is designed for reliable switching and control in high-demand applications, handling up to 63A of current with a 4NO (Normally Open) contact configuration. Suitable for 230V AC circuits, this contactor is ideal for industrial systems requiring robust and efficient performance.

Key Features:

• Rated Current: 63A, offering reliable control for both small and large electrical loads.
• Voltage Ratings: Rated for 400V operational voltage and 440V insulation voltage, with a 230V AC control voltage.
• Power Handling: Supports contact ratings up to 11.6 kW at 230V AC in AC7 category A and 35 kW at 400V AC in AC7 category A.
• Energy Efficiency: Inrush power absorption of 62.5 VA and operating consumption of 5.7 VA. The total power loss is 21.5 W under normal conditions.
• Compact Design: Dimensions of 60mm depth, 85mm height, and 54mm width for easy installation in control panels.
• Durability: Rated for 30,000 electrical cycles and 100,000 mechanical operations, providing long-term, dependable service.
• Lighting Control: Supports up to 3000 VA for fluorescent lamps and up to 6500 W for incandescent lamps.
• Flexible Installation: Accepts flexible conductors from 1.5mm² to 16mm² and rigid cables from 1.5mm² to 25mm².
• Safety & Compliance: Protection class II insulation, REACH and RoHS compliant for environmentally safe and reliable operation.
• Temperature Range: Operates in ambient temperatures between -10°C and 50°C, suitable for a wide range of environments.

The ESC463 Contactor is ideal for controlling high-power electrical circuits and ensuring safe, reliable switching in demanding conditions.
