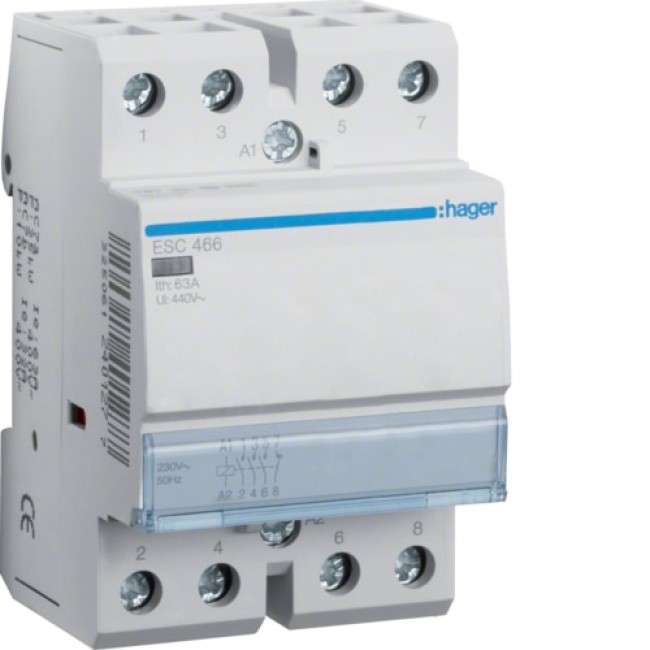

HAGER Contactor 63A, 3NO+1NC, 230V~50Hz - ESC466

Description for HAGER Contactor 63A, 3NO+1NC, 230V~50Hz - ESC466

The HAGER ESC466 Contactor is a reliable, high-performance electrical switching device with a 63A rated current and a 3NO+1NC (3 Normally Open + 1 Normally Closed) contact configuration. Designed for use in industrial environments, this contactor operates with a 230V AC control voltage and is engineered to handle high-power circuits efficiently.

Key Features:

• Rated Current: 63A, providing robust control for industrial electrical circuits.
• Voltage Ratings: Rated operational voltage of 400V and insulation voltage of 440V, with a control voltage of 230V AC.
• Power Handling: Supports up to 11.6 kW at 230V in AC7 category A, and 35 kW at 400V in AC7 category A.
• Power Consumption: Inrush power of 62.5 VA, operating consumption of 5.7 VA, and total power loss of 16.5 W.
• Compact Design: Measures 60mm in depth, 85mm in height, and 54mm in width, making it space-efficient for various installations.
• Lighting Control: Suitable for controlling up to 3000 VA of fluorescent lamps and 6500 W of incandescent lamps.
• Endurance: Withstands up to 30,000 electrical cycles and 100,000 mechanical operations, ensuring long-lasting durability.
• Installation Flexibility: Accepts flexible conductors from 1.5mm² to 16mm² and rigid cables from 1.5mm² to 25mm², with screw-type connections for secure installation.
• Safety & Compliance: Meets protection class II standards, REACH and RoHS compliant for environmental safety.
• Temperature Range: Operates within an ambient temperature range of -10°C to 50°C, with a storage and transport temperature range of -40°C to 80°C.

The ESC466 Contactor is an ideal solution for controlling high-power electrical systems in industrial applications, providing safety, reliability, and efficient operation.
