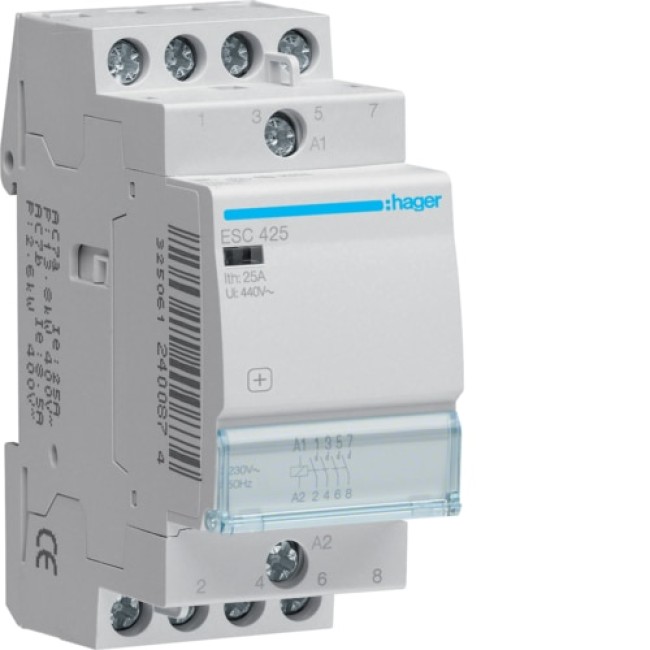

Hager Contactor 25A, 4NO, 230V~50Hz - ESC425

Description for Hager Contactor 25A, 4NO, 230V~50Hz - ESC425

The Hager ESC425 Contactor is an efficient electrical switch designed for reliable high-power control in various applications. With a rated current of 25A and 4 Normally Open (4NO) contacts, it operates seamlessly within industrial environments to ensure safety and long-lasting performance.

Key Features:

• Rated Current: 25A, with support for AC7 category A (25A) and category B (8.5A) load handling.
• Voltage Ratings: Compatible with 400V rated operational voltage and 440V insulation voltage, ensuring secure and stable operation.
• Power Handling: Can handle 4.6 kW with 230V in AC7 category A and 13.8 kW with 400V in AC7 category A.
• Energy Efficiency: Operating consumption of 3.4W and a total power loss of 7.5W under standard conditions.
• Compact Design: The contactor measures 60mm in depth, 83mm in height, and 35.75mm in width, offering a space-efficient solution.
• Durability: Rated for 30,000 electrical cycles and 100,000 mechanical operations, providing excellent longevity and reliability.
• Lighting Control: Supports up to 950 VA for fluorescent lamps and 1900 W for incandescent lamps, making it ideal for diverse lighting control applications.
• Flexible Installation: Accepts flexible conductors from 1mm² to 6mm² and rigid cables from 1mm² to 10mm², ensuring ease of installation.
• Safety and Compliance: Protection class II insulation, compliant with RoHS and REACH regulations, ensuring safe and environmentally friendly use.
• Temperature Range: Designed for operation in temperatures ranging from -10°C to 50°C, making it versatile across different environments.

The ESC425 Contactor is ideal for controlling electrical circuits in industrial setups, offering both performance and reliability in a compact, energy-efficient package.
