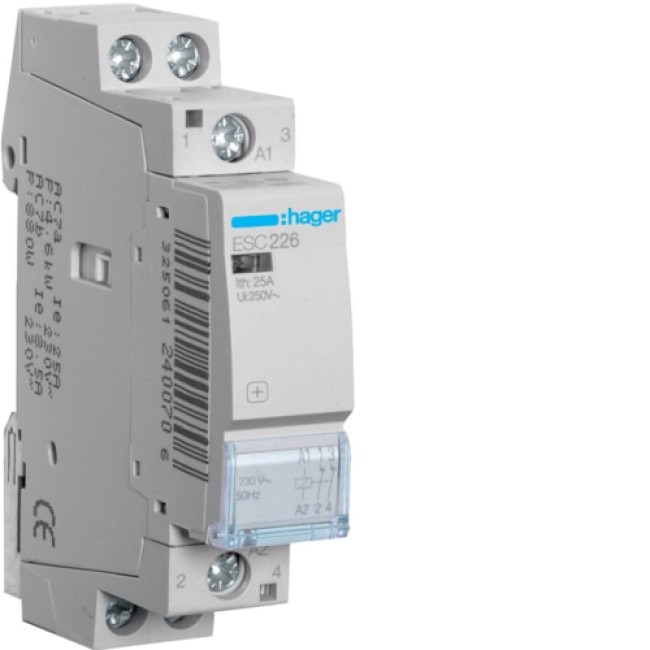

Hager Contactor 25A, 2NC, 230V~50Hz - ESC226
Model :ESC226
SKU :
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Hager Contactor 25A, 2NC, 230V~50Hz - ESC226
The Hager ESC226 Contactor is a high-performance electrical switching device featuring two Normally Closed (2NC) contacts, tailored for applications that require efficient and reliable control of circuits.
Key Features:
- Rated Current: Handles up to 25A for AC7 category A and 8.5A for AC7 category B.
- Voltage Ratings: Operates at 230V AC with a 250V insulation voltage and a 4kV impulse withstand voltage.
- Energy Efficiency: Low operating power consumption of 2.9VA and total power loss of 3W.
- Compact Dimensions: Space-saving design with a height of 83mm, width of 17.85mm, and depth of 60mm.
- Lighting Control: Supports up to 1900W incandescent lamps and 950VA fluorescent lamps for versatile applications.
- Durability: Offers 30,000 electrical cycles and 100,000 mechanical operations for long-lasting use.
- Convenient Installation: Compatible with flexible cables (1-6mm²) and rigid cables (1-10mm²) using secure screw-type connections.
- Safety Compliance: Adheres to REACH and RoHS standards for environmental and safety assurances.
- Operating Temperature Range: Performs reliably in conditions from -10°C to 50°C.
The ESC226 is an ideal solution for managing electrical circuits with dependable Normally Closed (NC) contact functionality, ensuring safety and efficiency across various applications.
