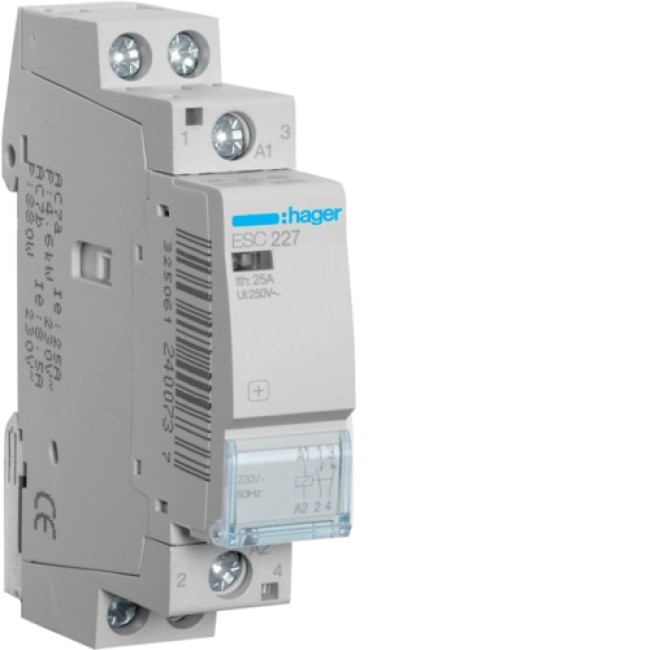

Hager Contactor 25A, 1NO+1NC, 230V~50Hz - ESC227

Description for Hager Contactor 25A, 1NO+1NC, 230V~50Hz - ESC227

The Hager ESC227 Contactor combines the reliability of one Normally Open (1NO) and one Normally Closed (1NC) contact for effective electrical switching. This versatile device operates efficiently at 230V AC, offering an optimal solution for various industrial applications.

Key Features:

• Rated Current: Supports up to 25A for both AC7 category A and 8.5A for AC7 category B applications.
• Voltage Ratings: 230V AC operational voltage with a 250V insulation voltage and a 4kV impulse withstand voltage for robust performance.
• Energy Efficiency: Consumes only 2.9VA of power during operation, with a total power loss of 2.5W.
• Compact Dimensions: Easy to install with a depth of 60mm, height of 83mm, and width of 17.85mm, maximizing space efficiency.
• Lighting Control: Handles up to 1900W for incandescent lamps and 950VA for fluorescent lamps, ideal for lighting circuits.
• Durability: Provides 30,000 electrical cycles and 100,000 mechanical operations for long-term reliability.
• Installation Flexibility: Compatible with flexible cables (1-6mm²) and rigid cables (1-10mm²), secured with a screw-type connection.
• Compliance and Safety: Fully conforms to REACH and RoHS standards, ensuring environmental safety.
• Temperature Range: Operates in environments with temperatures ranging from -10°C to 50°C.

The ESC227 Contactor is perfect for applications that require both Normally Open and Normally Closed functionality in a single compact, efficient, and durable device.
