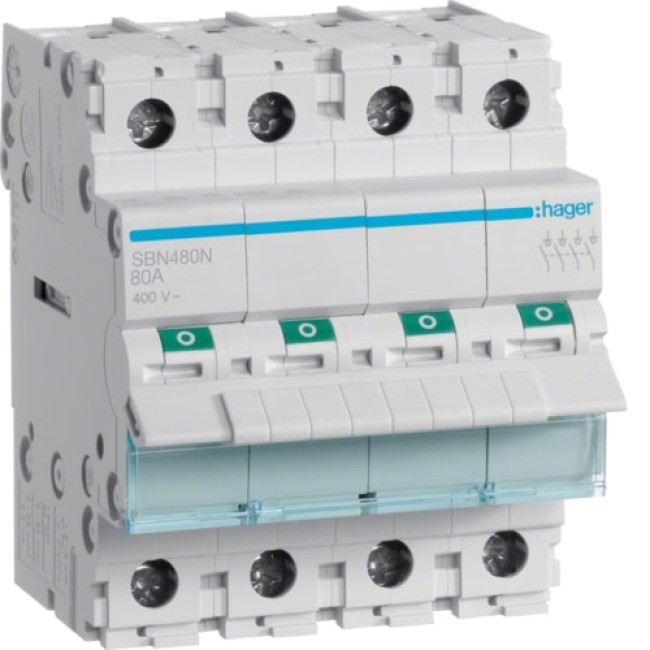

Hager 4-Pole, 80A Modular Switch - SBN480N

Description for Hager 4-Pole, 80A Modular Switch - SBN480N

The Hager 4-Pole, 80A Modular Switch - SBN480N is a robust solution for managing high-capacity circuits in residential, commercial, and industrial applications. With a rated operational voltage of 415V and a current rating of 80A, this modular switch ensures optimal performance and durability. Designed with compliance to IEC 60947-3 standards, it provides reliable and secure electrical switching.

Its advanced design, including screw connections and compatibility with flexible and rigid cables, makes installation and maintenance straightforward.

Key Features:

• Poles: 4P for enhanced circuit isolation and control
• Voltage Ratings:
  • Operational: 415V
  • Insulation: 440V
  • Impulse withstand: 6000V
• Current Ratings:
  • Rated operational current: 80A
  • Short-time withstand current (1s): 0.96kA
• Endurance:
  • Electrical durability: 2,500 cycles (AC21 & AC22)
  • Mechanical durability: 40,000 cycles
• Power Loss:
  • Total: 10.8W
  • Per Pole: 2.7W
• Compact Design:
  • Modular width: 4 modules
  • Dimensions: H: 83mm, W: 70mm, D: 69mm
• Environmental Performance:
  • Operating temperature: -20°C to 50°C
  • Storage temperature: -40°C to 80°C
  • Pollution degree: 2
  • Altitude: Up to 2000m
• Connection Options:
  • Flexible conductor cross-section: 6–35mm²
  • Rigid conductor cross-section: 6–50mm²
  • Secure screw terminals
• Compliance:
  • Meets IEC 60947-3 standards
  • REACH and RoHS conform
