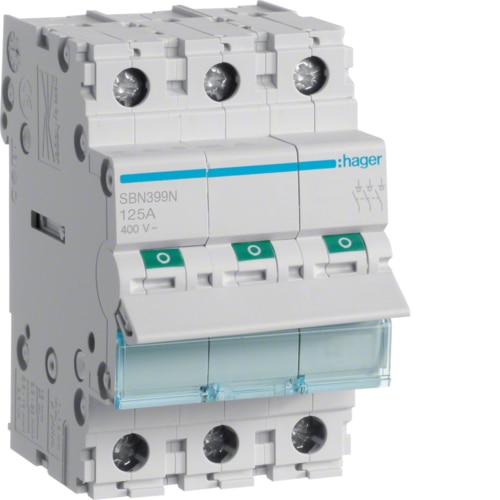

Hager 3-Pole, 125A Modular Switch - SBN399N

Description for Hager 3-Pole, 125A Modular Switch - SBN399N

The Hager 3-Pole, 125A Modular Switch - SBN399N is built for demanding electrical applications, offering reliable and efficient circuit control. Designed for 415V systems, it delivers high performance with a rated current of 125A and conforms to IEC 60947-3 standards.

This modular switch is ideal for industrial, commercial, and residential setups, boasting robust construction, low power loss, and superior endurance. With straightforward installation and a compact design, it ensures safe and efficient operation in diverse environments.

Key Features:

• Poles: 3P for versatile circuit management
• Voltage Ratings:
  • Operational: 415V
  • Insulation: 440V
  • Impulse withstand: 6000V
• Current Ratings:
  • Rated current: 125A
  • Thermal rated current: 125A
  • Short-time withstand current: 1.5 kA (1s)
• Power Loss:
  • Total: 24W
  • Per Pole: 8W
• Endurance:
  • Electrical: 2,500 cycles (AC21 & AC22)
  • Mechanical: 40,000 cycles
• Compact Dimensions:
  • Depth: 68 mm
  • Height: 83 mm
  • Width: 52.5 mm
• Connection Specifications:
  • Flexible conductor cross-section: 6-35 mm²
  • Rigid conductor cross-section: 6-50 mm²
  • Screw connections with 3.6 Nm tightening torque
• Environmental Resilience:
  • Operating temperature: -20°C to 50°C
  • Storage temperature: -40°C to 80°C
  • Pollution degree: 2 (IEC 60664/IEC 60947-2 compliant)
  • Altitude: Up to 2000 m
• Compliance:
  • REACH and RoHS conform
  • Meets IEC 60947-3 standards
