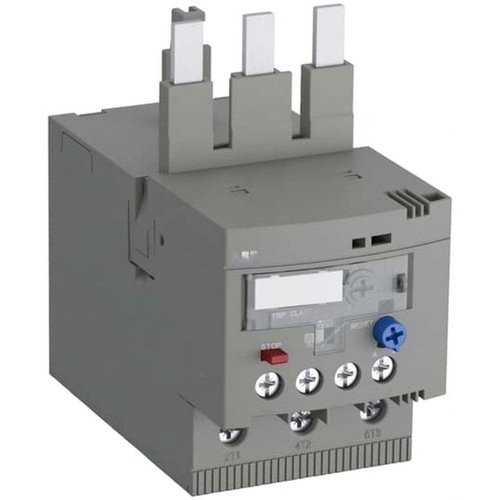

ABB Thermal Overload Relay, 1NO 1NC, 60A - TF96-60
- Condition: New
Description for ABB Thermal Overload Relay, 1NO 1NC, 60A - TF96-60
The ABB TF96-60 Thermal Overload Relay is an economical electromechanical protection device designed for main circuit applications. It delivers reliable and fast protection for motors during overload or phase failure, featuring a trip class of 10. This relay includes essential features such as temperature compensation, an NC trip contact, an NO signal contact, and the option for automatic or manual reset. Additional functionalities include a trip-free mechanism, a STOP function, and trip indication. The overload relays connect directly to block contactors for seamless integration.
Specifications:
- Item Name: Thermal Overload Relay
- Model: TF96-60
- Article Number: B6A2072
- Manufacturer: ABB
- Color: Grey
- Manufacture Part Number: 1SAZ911201R1002
- Auxiliary Contacts: 1 NC, 1 NO
- Operating Conditions per Pole: 3.2 - 4.6W
- Rated Impulse Withstand Voltage: 6kV (Auxiliary Circuit), 8kV (Main Circuit)
- Operating Temperature: -40 to 70°C
- Storage Temperature: -50 to 80°C
- Dimensions: 69.9 x 106.9 x 106.9mm
- Insulation Voltage: 690V
- Voltage: 690VAC / 440VDC
- Amperage (A): 60A
- Torque (Nm): 6-9 Nm
- Frequency: 50-60Hz
- Ingress Protection (IP Rating): IP20
- Brand Origin: Germany
The TF96-60 relay is a dependable solution for safeguarding motors in a range of industrial applications, ensuring operational efficiency and durability.
