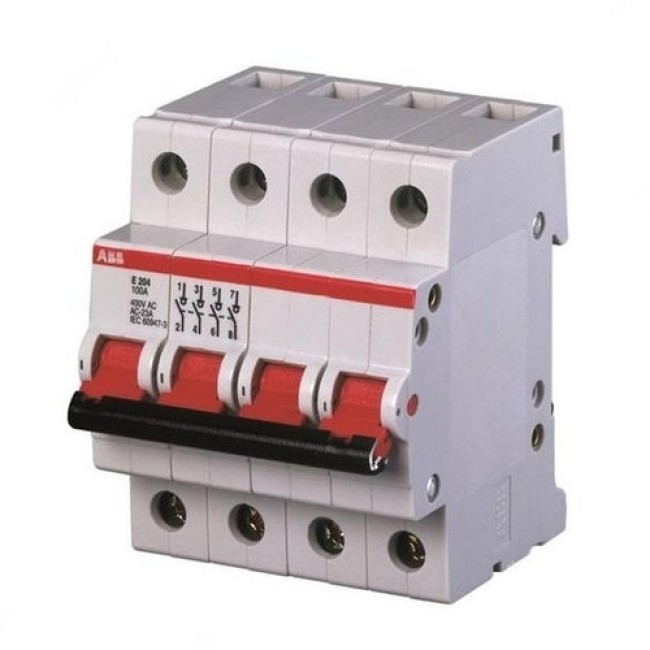

ABB Switch Disconnector, 4P, 125A - E204-125R

Description for ABB Switch Disconnector, 4P, 125A - E204-125R

The ABB E204-125R Switch Disconnector is designed to meet various protection needs against overload, short circuits, and earth leakage for domestic, commercial, and industrial applications. With a 4-pole, 125A capacity, this device offers high durability and reliability in ensuring safe electrical operations.

This switch disconnector enables quick and easy removal without dismantling the busbar, facilitating efficient installation and maintenance. Its captive screws with recessed/slotted heads (Pozidrive size 2) provide secure and reliable connections. The device also supports the addition of up to 3 auxiliary contacts (S2C-H6R) for extended features, and its integrated lay-on edge allows for seamless use with a labeling system (ILS). Additionally, an optional locking device can be used for protection against unauthorized ON/OFF switching.

Certified by VDE, CCC, KEMA, and conforming to IEC/EN 60947-3 standards, this switch disconnector is also CE and RoHS compliant, making it a safe and environmentally friendly choice.

Key Features:

• Model: E204-125R
• Number of Poles: 4P
• Rated Current (Amps): 125A
• Protection: Overload, short circuit, and earth leakage
• Captive screws with recessed/slotted heads (Pozidrive size 2)
• Quick removal without dismantling the busbar
• Supports up to 3 auxiliary contacts (S2C-H6R)
• Optional locking device for unauthorized ON/OFF prevention
• Approvals: VDE, CCC, KEMA
• Standards Compliance: IEC/EN 60947-3
• Certification: CE
• Green Certifications: RoHS
