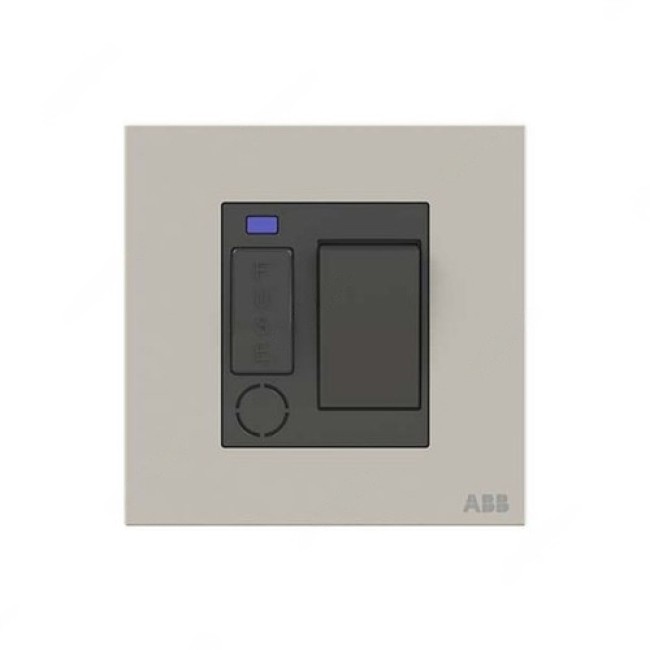

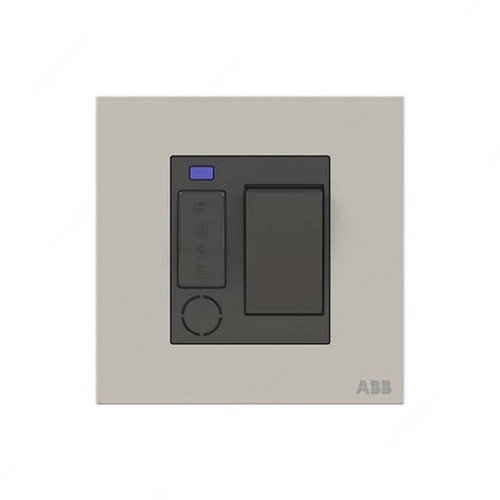

ABB Single Pole Switched Spur Unit with Flex Outlet and LED, Millenium, 13A, 6kA, Dune Sand - AM50753-DU

Description for ABB Single Pole Switched Spur Unit with Flex Outlet and LED, Millenium, 13A, 6kA, Dune Sand - AM50753-DU

The ABB AM50753-DU Single Pole Switched Spur Unit from the Millenium series offers a sleek and modern design with its Dune Sand matte finish. This unit features a 13A switched socket with a flex outlet and integrated LED indicator, providing both practical functionality and a contemporary aesthetic. Built for durability, it has a 6kA breaking capacity and complies with BS1362 safety standards. The snap mounting type ensures easy installation, and the unit operates at 230VAC with a frequency of 50Hz, making it suitable for various residential and commercial applications.

Key Features:

• Model: AM50753-DU
• Socket Type: Switched Spur Unit with Flex Outlet and LED
• Material: Stainless Steel
• Finish: Matte Dune Sand
• Amps (A): 13A
• Voltage: 230VAC
• Frequency: 50Hz
• Safety Class: IP20
• Mounting Type: Snap
• Fuse Size: 6.3 x 25mm
• Back Box Depth: 28mm

Specifications:

• Height: 62mm
• Width: 102mm
• Depth: 102mm
• Breaking Capacity: 6kA
• Breakdown Voltage: 264V
• Standards: BS1362
• Operating Ambient Temperature: -5 to 35°C
• Storage Temperature: -5 to 50°C
• Width in Modular Spacings: 1.5

Items Included:

• 1x ABB Single Pole Switched Spur Unit with Flex Outlet and LED
