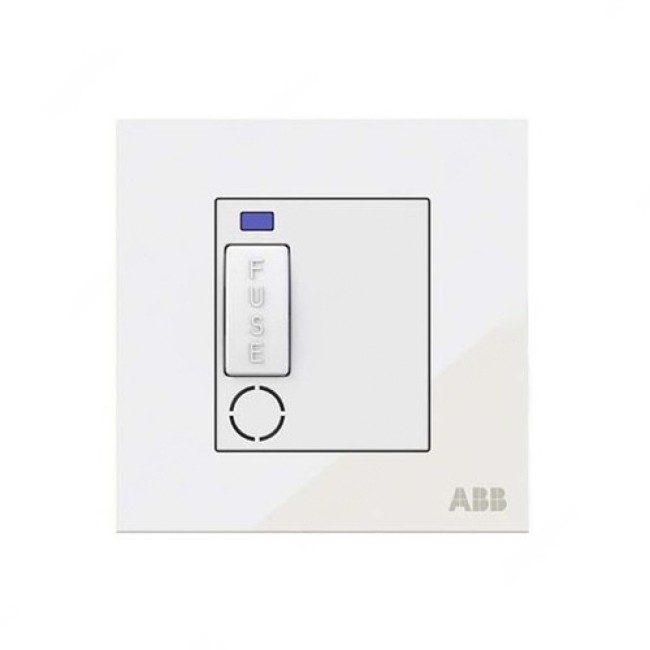

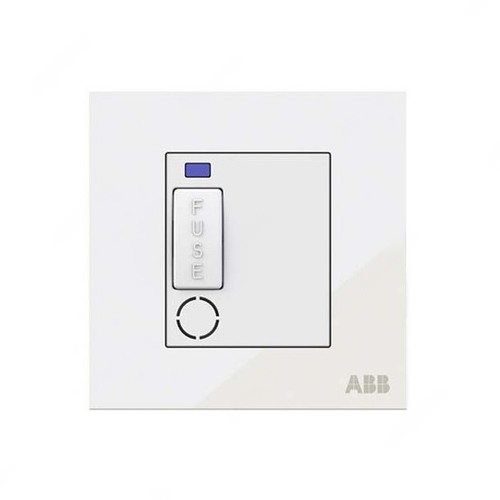

ABB Single Pole Spur Unit with Flex Outlet and LED, Millenium, 13A, 6kA, White Glass - AM50853-WG

Description for ABB Single Pole Spur Unit with Flex Outlet and LED, Millenium, 13A, 6kA, White Glass - AM50853-WG

The ABB AM50853-WG Single Pole Spur Unit, part of the Millenium series, combines functionality and elegance with its White Glass glossy finish. This unit includes a flex outlet and an integrated LED for a modern, high-performance solution. With a 13A rating, 6kA breaking capacity, and compliance with BS1362 standards, it guarantees safety and reliability in various applications. Designed for 230VAC operation at 50Hz, this spur unit is easy to install with its snap mounting type, making it an ideal choice for both residential and commercial spaces.

Key Features:

• Model: AM50853-WG
• Socket Type: Single Pole Spur Unit with Flex Outlet and LED
• Material: Stainless Steel
• Finish: Glossy White Glass
• Amps (A): 13A
• Voltage: 230VAC
• Frequency: 50Hz
• Safety Class: IP20
• Mounting Type: Snap
• Fuse Size: 6.3 x 25mm
• Back Box Depth: 28mm

Specifications:

• Height: 62mm
• Width: 102mm
• Depth: 102mm
• Breaking Capacity: 6kA
• Breakdown Voltage: 264V
• Standards: BS1362
• Operating Ambient Temperature: -5 to 35°C
• Storage Temperature: -5 to 50°C
• Width in Modular Spacings: 1.5

Items Included:

• 1x ABB Single Pole Spur Unit with Flex Outlet and LED
