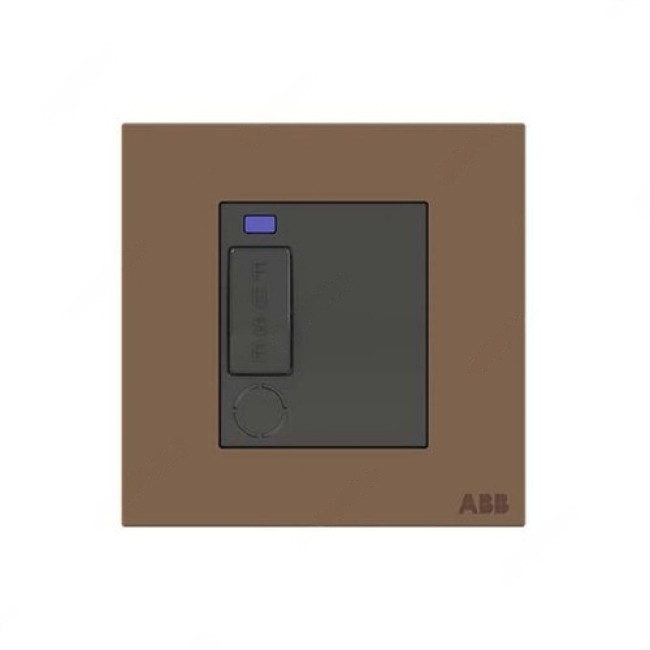

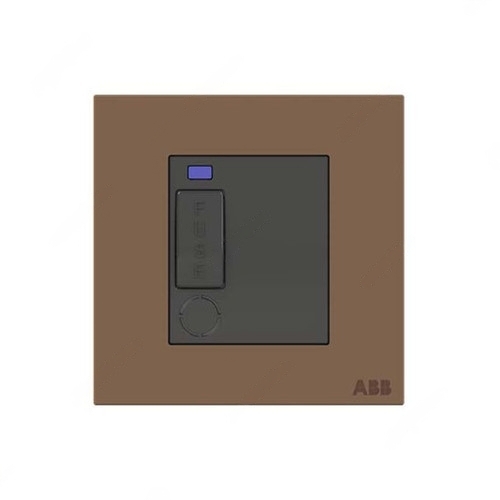

ABB Single Pole Spur Unit with Flex Outlet and LED, Millenium, 13A, 6kA, Mocha Brown - AM50853-MO

Description for ABB Single Pole Spur Unit with Flex Outlet and LED, Millenium, 13A, 6kA, Mocha Brown - AM50853-MO

The ABB AM50853-MO Single Pole Spur Unit from the Millenium series is designed for both functionality and aesthetic appeal. Finished in a sophisticated Mocha Brown matte stainless steel, this unit features a flex outlet and integrated LED for added convenience and modern design. Rated for 13A and 6kA breaking capacity, it is built to provide reliable and safe electrical connections. The unit is suitable for 230VAC at 50Hz, and its snap mounting system ensures easy installation. Ideal for residential or commercial use, this unit meets the BS1362 standard and operates efficiently in a range of environments.

Key Features:

• Model: AM50853-MO
• Socket Type: Single Pole Spur Unit with Flex Outlet and LED
• Material: Stainless Steel
• Finish: Mocha Brown Matte
• Amps (A): 13A
• Voltage: 230VAC
• Frequency: 50Hz
• Safety Class: IP20
• Mounting Type: Snap
• Fuse Size: 6.3 x 25mm
• Back Box Depth: 28mm

Specifications:

• Height: 62mm
• Width: 102mm
• Depth: 102mm
• Breaking Capacity: 6kA
• Breakdown Voltage: 264V
• Standards: BS1362
• Operating Ambient Temperature: -5 to 35°C
• Storage Temperature: -5 to 50°C
• Width in Modular Spacings: 1.5

Items Included:

• 1x ABB Single Pole Spur Unit with Flex Outlet and LED
