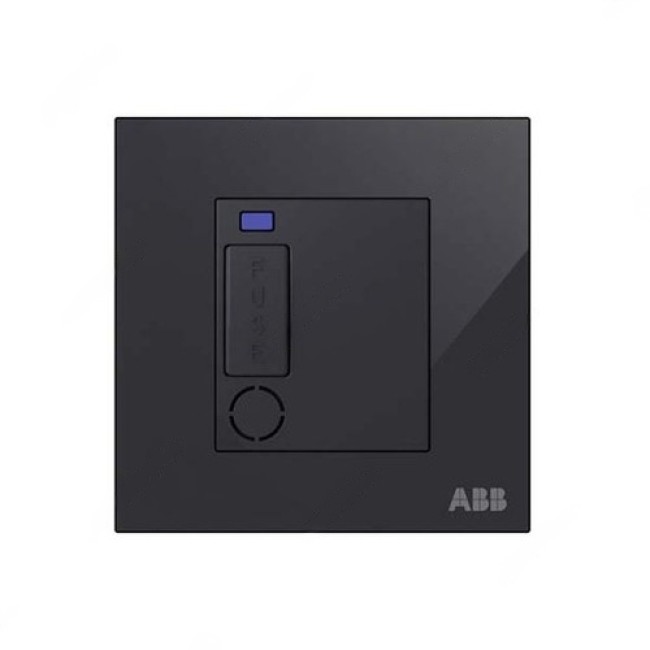

ABB Single Pole Spur Unit with Flex Outlet and LED, Millenium, 13A, 6kA, Black Glass - AM50853-BG

Description for ABB Single Pole Spur Unit with Flex Outlet and LED, Millenium, 13A, 6kA, Black Glass - AM50853-BG

The ABB AM50853-BG Single Pole Spur Unit from the Millenium series features a sleek Black Glass glossy finish, offering both style and functionality. This unit is designed with a flex outlet and integrated LED, making it a modern addition to any electrical setup. With a 13A rating and a 6kA breaking capacity, it ensures safety and reliability. The unit operates at 230VAC with a frequency of 50Hz and meets BS1362 standards for quality and safety. Its snap mounting type allows for easy installation, and it’s suitable for a wide range of residential and commercial applications.

Key Features:

• Model: AM50853-BG
• Socket Type: Single Pole Spur Unit with Flex Outlet and LED
• Material: Stainless Steel
• Finish: Glossy Black Glass
• Amps (A): 13A
• Voltage: 230VAC
• Frequency: 50Hz
• Safety Class: IP20
• Mounting Type: Snap
• Fuse Size: 6.3 x 25mm
• Back Box Depth: 28mm

Specifications:

• Height: 62mm
• Width: 102mm
• Depth: 102mm
• Breaking Capacity: 6kA
• Breakdown Voltage: 264V
• Standards: BS1362
• Operating Ambient Temperature: -5 to 35°C
• Storage Temperature: -5 to 50°C
• Width in Modular Spacings: 1.5

Items Included:

• 1x ABB Single Pole Spur Unit with Flex Outlet and LED
