ABB Rotary Dimmer With Half/Double Rocker Frame, Millenium, 1 Module, 1 Gang, 2 Pcs/Set - AMD60322-AN-plus-AMD5144-MO

Description for ABB Rotary Dimmer With Half/Double Rocker Frame, Millenium, 1 Module, 1 Gang, 2 Pcs/Set - AMD60322-AN-plus-AMD5144-MO

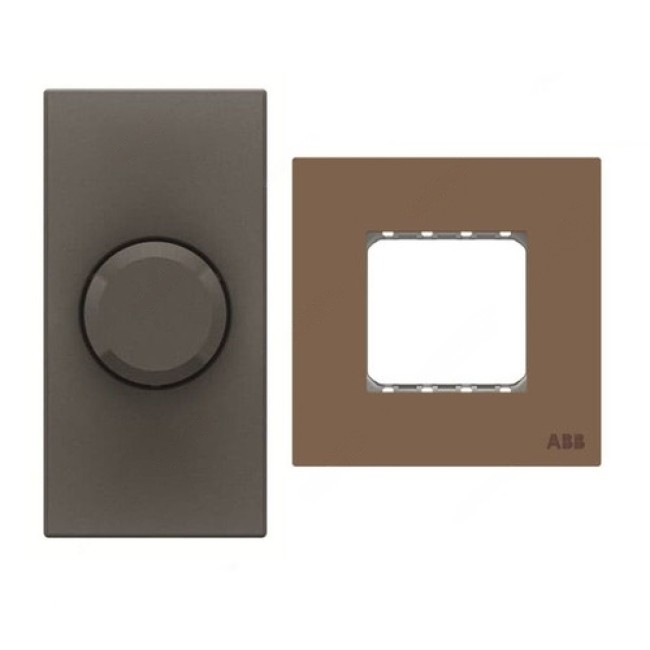

The ABB AMD60322-AN Universal/LED Rotary Dimmer with Half/Double Rocker Frame (AMD5144-MO) is a stylish and functional lighting control solution for modern spaces. This set includes an anthracite rotary dimmer with overload protection and a mocha brown glass rocker frame. The dimmer is suitable for resistive loads, with multiple power ratings, including LED, incandescent, and halogen lamps. The frame is made of durable stainless steel with a glossy mocha brown finish, providing both aesthetic appeal and practical functionality.

Key Features:

• Rotary Dimmer (AMD60322-AN):

  • 3-wire connection with OFF position
  • Overload protection with back-up fuse
  • Actuator type: Turn button
  • Rated Voltage: 230VAC ± 10%
  • Frequency: 50/60 Hz
  • Ambient Temperature: 0 to 35°C
  • Load Type: Resistive Load
  • Power Rating:
    • LEDi (leading-edge): 4/100 W/VA (max. 10 lamps)
    • LEDi (trailing-edge): 4/250 W/VA (max. 10 lamps)
    • Incandescent: 4/250 W/VA
    • Halogen: 10/250 W/VA
  • Mounting: Flush Mounted (plaster)
  • Material: Thermoplastic
  • Color: Anthracite
  • Surface Protection: Decor, Matt finish

• Half/Double Rocker Frame (AMD5144-MO):

  • Material: Stainless Steel with Mocha Brown Glass finish
  • Number of Gangs: 1
  • Mounting Type: Clamp, Horizontal or Vertical orientation
  • Degree of Protection: IP20
  • Ambient Operating Temperature: -5 to 35°C
  • Storage Temperature: -5 to 50°C
  • Width: 86mm, Height: 86mm, Depth: 4mm
  • Weight: 0.114 Kg

Items Included:

• 1x ABB AMD60322-AN Rotary Dimmer
• 1x ABB AMD5144-MO Half/Double Rocker Frame
