ABB Rotary Dimmer With Half/Double Rocker Frame, Millenium, 1 Module, 1 Gang, 2 Pcs/Set - AMD60322-AN-plus-AMD5144-BG

Description for ABB Rotary Dimmer With Half/Double Rocker Frame, Millenium, 1 Module, 1 Gang, 2 Pcs/Set - AMD60322-AN-plus-AMD5144-BG

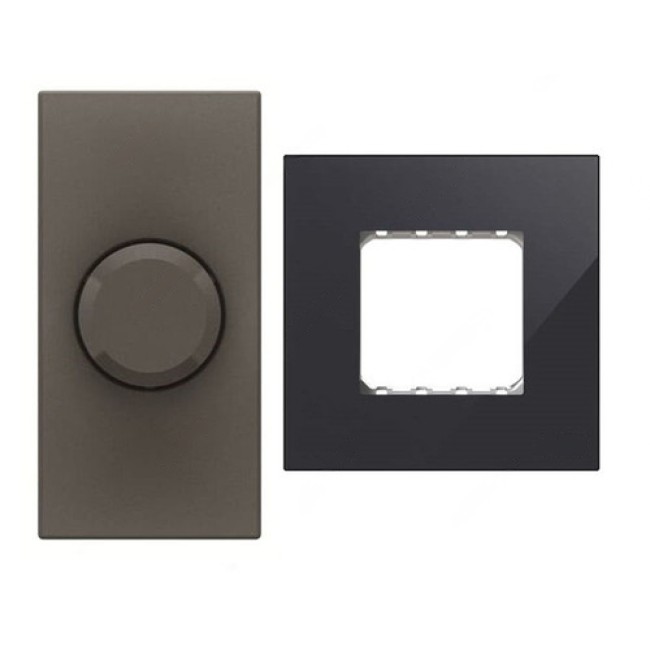

The ABB AMD60322-AN Universal/LED Rotary Dimmer with Half/Double Rocker Frame (AMD5144-BG) offers both functionality and elegance for controlling lighting. Designed for use with resistive loads, this dimmer allows smooth adjustments of light intensity and is equipped with overload protection and a back-up fuse for added security. The set includes a rotary dimmer and a stylish half/double rocker frame, both from ABB’s Millenium series. The frame features a sleek black glass finish with a glossy look, and the dimmer is suitable for 230VAC applications.

Key Features:

• Rotary Dimmer (AMD60322-AN):

  • 3-wire connection with OFF position
  • Overload protection with back-up fuse
  • Actuator type: Turn button
  • Rated Voltage: 230VAC ± 10%
  • Frequency: 50/60 Hz
  • Ambient Temperature: 0 to 35°C
  • Load Type: Resistive Load
  • Power Rating:
    • LEDi (leading-edge): 4/100 W/VA (max. 10 lamps)
    • LEDi (trailing-edge): 4/250 W/VA (max. 10 lamps)
    • Incandescent: 4/250 W/VA
    • Halogen: 10/250 W/VA
  • Mounting: Flush Mounted (plaster)
  • Material: Thermoplastic
  • Color: Anthracite
  • Surface Protection: Decor, Matt finish

• Half/Double Rocker Frame (AMD5144-BG):

  • Material: Stainless Steel with Black Glass finish
  • Number of Gangs: 1
  • Mounting Type: Clamp, Horizontal or Vertical orientation
  • Degree of Protection: IP20
  • Ambient Operating Temperature: -5 to 35°C
  • Storage Temperature: -5 to 50°C
  • Width: 86mm, Height: 86mm, Depth: 4mm
  • Weight: 0.114 Kg

Items Included:

• 1x ABB AMD60322-AN Rotary Dimmer
• 1x ABB AMD5144-BG Half/Double Rocker Frame
