ABB Rotary Dimmer With Double Rocker Frame, Millenium, 1 Gang - AMD5144-MG-plus-AMD60344-AN

Description for ABB Rotary Dimmer With Double Rocker Frame, Millenium, 1 Gang - AMD5144-MG-plus-AMD60344-AN

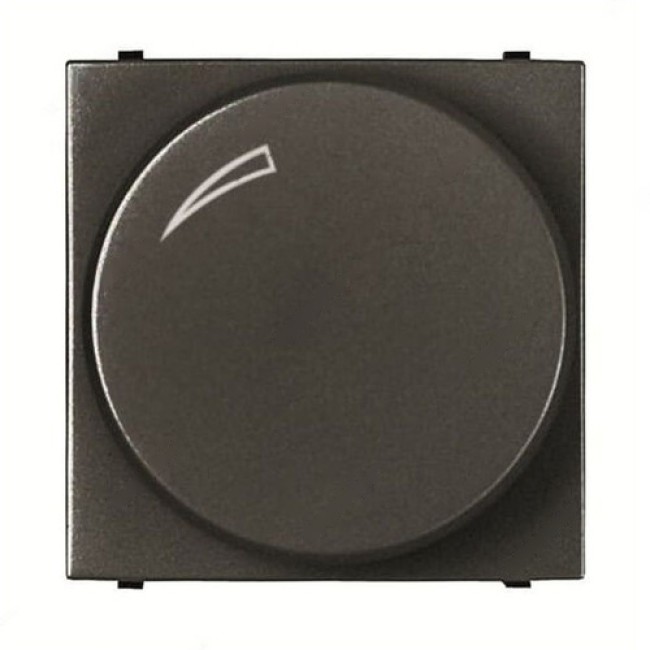

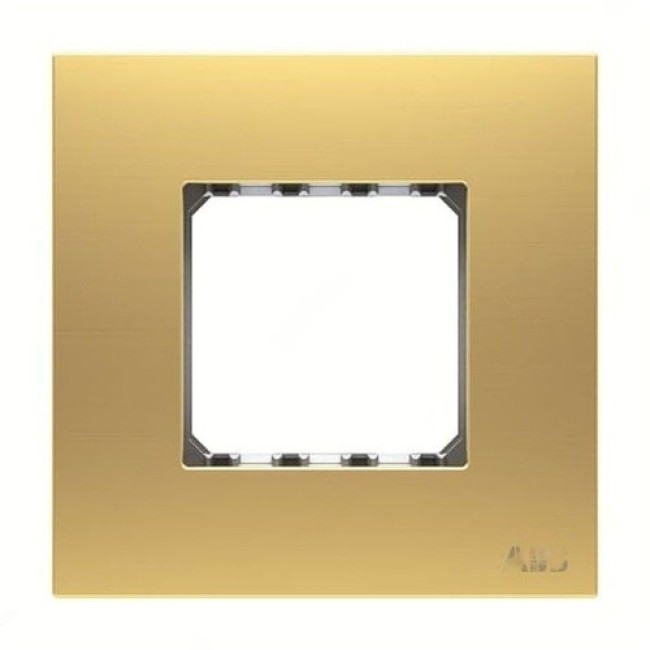

The ABB Millenium Rotary Dimmer with Double Rocker Frame, model AMD5144-MG-plus-AMD60344-AN, is designed for precise lighting control and elegant décor. This 1-gang dimmer switch offers compatibility with various lamp types, including LED, halogen, and incandescent, with adjustable dimming options. The frame includes a robust metal mounting plate, and the dimmer is built with durable plastic and stainless steel for a matte, protected finish.

Specifications:

• Model: AMD5144-MG-plus-AMD60344-AN
• Product Series: Millenium
• Manufacturer: ABB
• Material: Plastic with Stainless Steel Frame
• Dimensions: H 64 mm x W 76 mm, Frame Dimensions 86 x 86 mm
• Voltage: 230VAC
• Frequency: 50/60 Hz
• Power Indicator: LED
• Degree of Protection: IP20
• Ambient Temperature: Operation: -5 to +35°C, Storage: -5 to +50°C
• Lamp Compatibility:
  • LEDi: 2/100 W/VA (max. 10 lamps)
  • Dimmable energy-saving lamps: 2/100 W/VA
  • LV LEDi with transformer (type L or LC): 4/100 W/VA
  • Incandescent & halogen lamps: 10/250 W/VA
  • LV halogen with transformer (type L or LC): 10/250 W/VA
• Back-up Fuse: Electronic
• Number of Gangs: 1
• Items Included: Electrical Switch, Wall Plate

Manufacture Part Number: 2CLA627100N1701, 2CLA626030N1801

Unit: Piece
