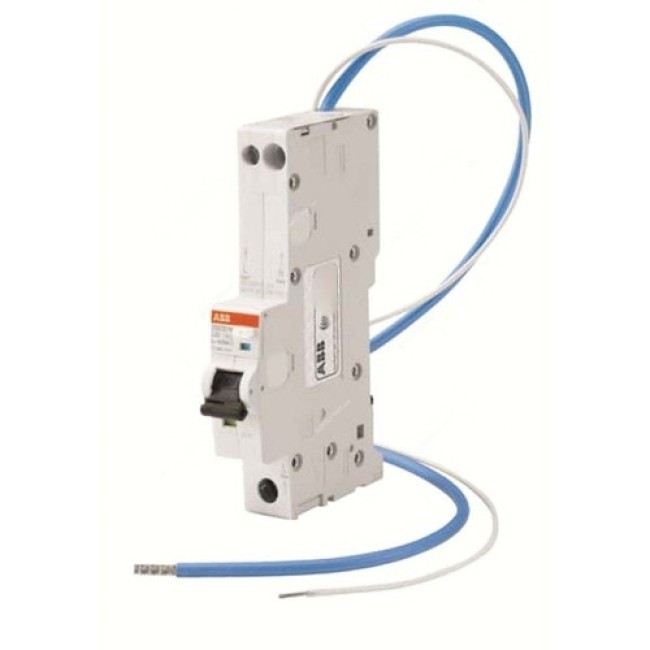

ABB Residual Current Circuit Breaker with Overcurrent Protection, Curve Type C, 1 + N, 10kA, 32A - DSE201-M-C32-AC100-N-Blue

Description for ABB Residual Current Circuit Breaker with Overcurrent Protection, Curve Type C, 1 + N, 10kA, 32A - DSE201-M-C32-AC100-N-Blue

The ABB DSE201-M-C32-AC100-N-Blue is a single-module 1P+N residual current circuit breaker with overcurrent protection (RCBO) designed for safeguarding against short circuits, overloads, earth faults, and indirect contacts, along with added protection against direct contacts (30 mA versions). This RCBO includes a supply neutral wire and functional earth wire for comprehensive safety and efficiency.

• Model: DSE201-M-C32-AC100-N-Blue
• Rated Impulse Withstand Voltage: 4 kV
• Ambient Reference Temperature: 30°C
• Rated Short-Circuit Capacity (Icn): 10 kA
• Amps (A): 32A, with Curve Type C tripping characteristic
• Voltage: 230-240VAC, with an insulation voltage of 500V
• Switch Type: Toggle, featuring a red/green power indicator
• Operating Temperature: -25°C to 55°C

Compact and suitable for both residential and commercial installations, this device offers robust protection in various environments.
