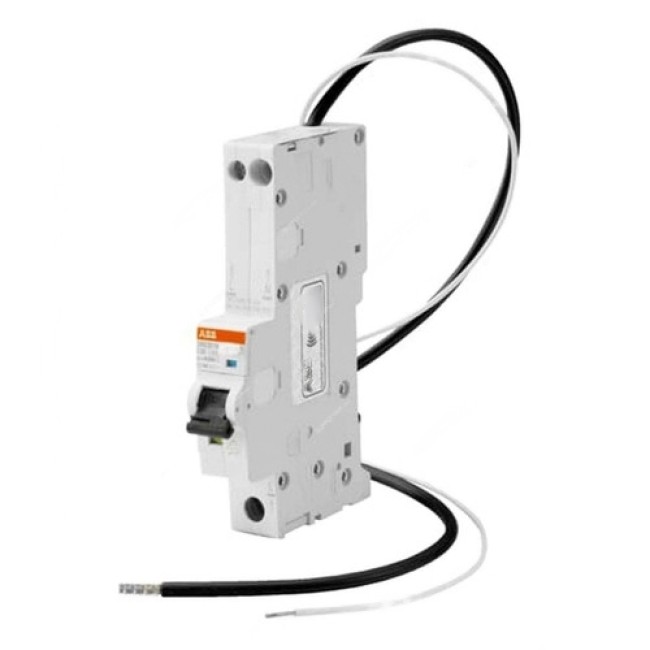

ABB Residual Current Circuit Breaker With Overcurrent Protection, Curve Type C, 1 + N, 10kA, 10A - DSE201-M-C10-AC30-N-Black

Description for ABB Residual Current Circuit Breaker With Overcurrent Protection, Curve Type C, 1 + N, 10kA, 10A - DSE201-M-C10-AC30-N-Black

The ABB DSE201-M-C10-AC30-N Residual Current Circuit Breaker with Overcurrent Protection (RCBO) provides comprehensive safety for electrical installations. Designed as a 1P+N device, it effectively protects against short-circuit currents, overloads, and earth fault currents, while also offering additional safety against direct contacts. Equipped with a supply neutral wire and functional earth wire, this unit ensures reliable performance in diverse applications.

Key Features:

• Rated Impulse Withstand Voltage: 4kV
• Rated Short-Circuit Capacity (Icn): 10kA
• Toggle Switch Type for ease of operation
• Power Indicator: Red On-Green Off for clear status indication

Specifications:

• Item Name: Residual Current Circuit Breaker
• Model: DSE201-M-C10-AC30-N-Black
• Article Number: B5A2151
• Manufacturer: ABB
• Color: White
• Current Rating: 10A
• Insulation Voltage: 500V
• Frequency: 50-60Hz
• Voltage: 230-240VAC
• Operation Temperature: -25 to 55 °C
• Dimensions: 18 x 115 x 96 mm
• Torque Specifications: Top 1.2 N-m, Bottom 2.8 N-m
• Curve Type: C
• Number of Poles: 1 + N
