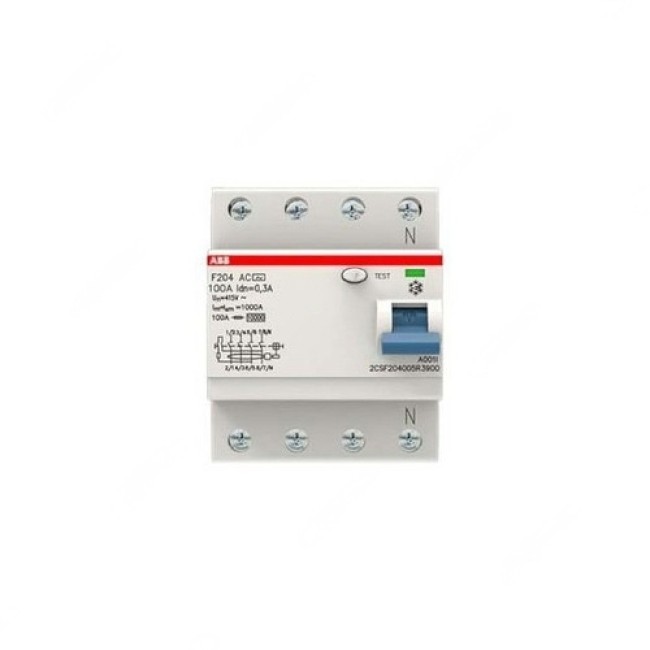

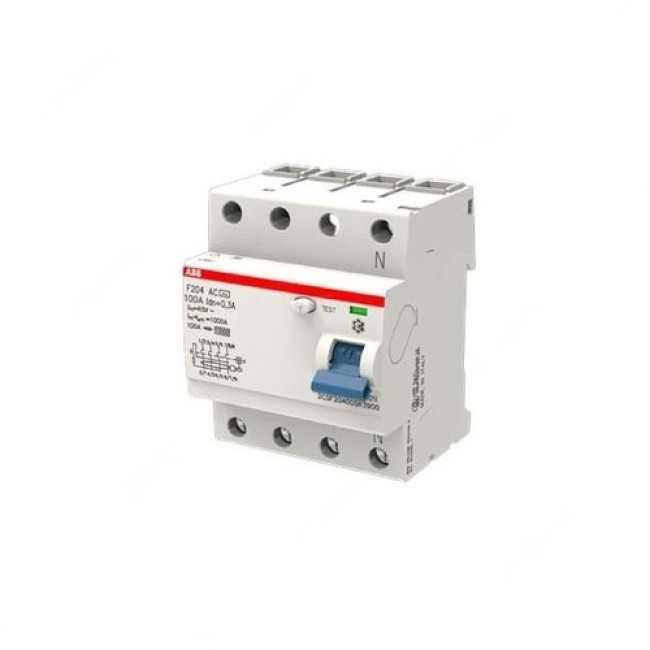

ABB Residual Current Circuit Breaker, 4 Pole, 300mA, 100A - F204-AC-100-0-3-IEC

Description for ABB Residual Current Circuit Breaker, 4 Pole, 300mA, 100A - F204-AC-100-0-3-IEC

The ABB F204-AC-100-0-3-IEC Residual Current Circuit Breaker (RCCB) provides high-level protection against fault currents to earth, safeguarding people and electrical installations. Suitable for both domestic and commercial environments, this RCCB features a robust design rated for a residual current of 300mA and current handling up to 100A, with a rated impulse withstand voltage of 4kV. The RCCB operates reliably in a wide temperature range and is built to endure demanding conditions.

Specifications:

• Model: F204-AC-100-0-3-IEC
• Rated Residual Current: 300mA
• Rated Current: 100A
• Impulse Withstand Voltage: 4kV
• Insulation Voltage: 500V
• Frequency: 50-60Hz
• Voltage: 230-400VAC
• Dimensions: 70 x 85 x 69 mm
• Color: White
• Operating Temperature: -25°C to 55°C
• Manufacturer Part Number: 2CSF204005R3900
