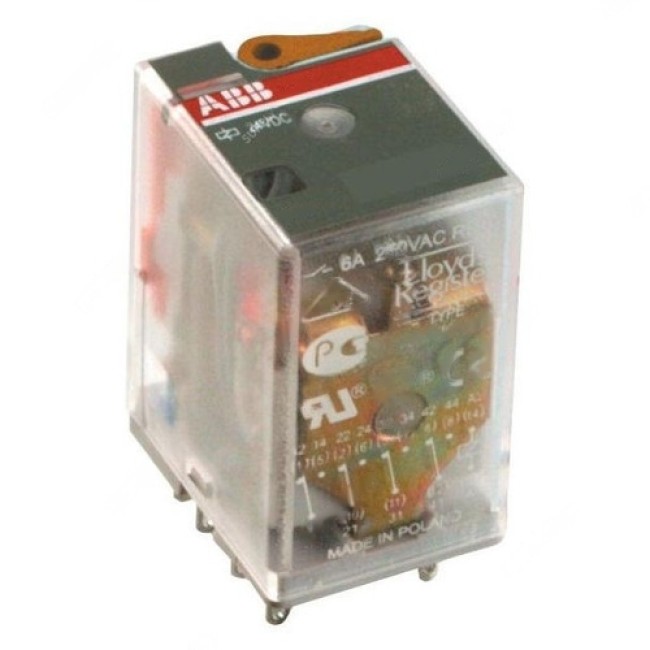

ABB Pluggable Interface Relay, 4PDT, 24VAC, 6A - CR-M024AC4L

Description for ABB Pluggable Interface Relay, 4PDT, 24VAC, 6A - CR-M024AC4L

The ABB Pluggable Interface Relay (CR-M024AC4L) is a versatile and reliable miniature relay from ABB’s CR-M range, designed for easy integration into various applications. Operating on a 24VAC control supply voltage, this relay offers a 4PDT (4 c/o SPDT) contact configuration rated at 250V/6A. It includes an integrated orange test button for manual actuation and locking, as well as an LED indicator for operational status.

This relay is cadmium-free, features reverse polarity protection, and supports a range of accessories, including pluggable function modules and RC elements. Suitable for high-performance switching in both industrial and commercial environments, it is engineered to ensure durability and efficiency.

Key Features:

• Integrated LED and Test Button: LED indication and orange test button for easy operation and manual contact locking
• Cadmium-Free Contacts: Environmentally friendly contact material
• Enhanced Protection: Includes reverse polarity protection, free-wheeling diode, and overvoltage protection
• Compact Design: Width of 27mm on socket for streamlined installation

Specifications:

• Item Name: Pluggable Interface Relay
• Model: CR-M024AC4L
• Manufacturer: ABB
• Manufacturer Part Number: 1SVR405613R0100
• Width: 21.2mm
• Height: 35.6mm
• Length: 27.5mm
• Current Capacity: 6A
• Output Voltage: 250VAC
• Input Voltage: 24VAC
• Brand Origin: Sweden
• Unit: Piece

The ABB CR-M024AC4L Pluggable Interface Relay is a reliable choice for achieving efficient control and protection in electrical circuits, delivering high performance in a compact design.
