ABB Molded Case Circuit Breaker, 3P, 40A - XT1C-160-TMD-40-450-3p-F-F

Description for ABB Molded Case Circuit Breaker, 3P, 40A - XT1C-160-TMD-40-450-3p-F-F

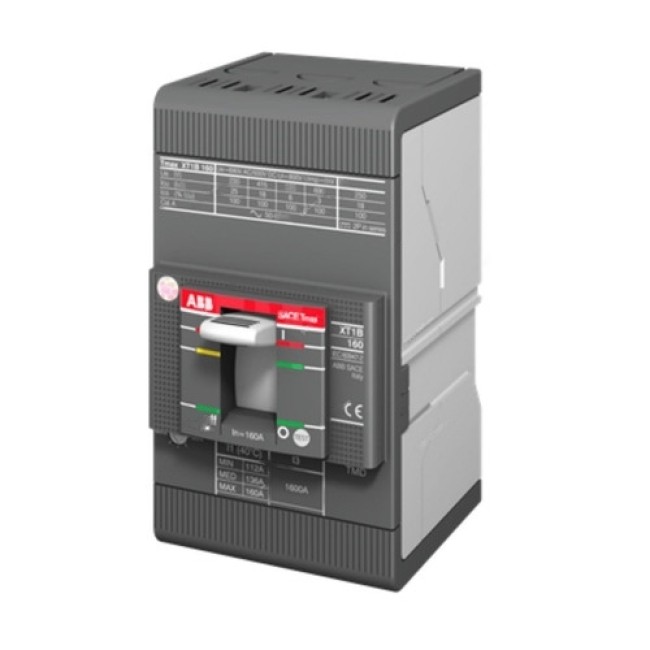

The ABB XT1C-160-TMD-40-450-3p-F-F Molded Case Circuit Breaker is a compact and durable electrical protection device designed to prevent overloading and short-circuits in electrical systems. With a 40A current capacity and 3 poles, this breaker is built with a molded case to withstand environmental factors, ensuring durability and reliability in various industrial, commercial, and residential applications. It meets stringent safety standards and offers fast response times.

Key Features:

• Electrical Durability: 120 cycles per hour; rated for 8000 cycles
• Mechanical Durability: 240 cycles per hour; rated for 25000 cycles
• Opening Time: 15 ms (CB with SOR/UVR)
• Power Loss: 2.6W per pole at rated conditions
• Rated Impulse Withstand Voltage: 8 kV
• Rated Instantaneous Short-Circuit Current Setting: 450A for quick fault clearing
• Ingress Protection (IP Rating): Designed to provide environmental protection in high-demand settings

Specifications:

• Item Name: Molded Case Circuit Breaker
• Model: XT1C-160-TMD-40-450-3p-F-F
• Article Number: 1SDA067393R1
• Manufacturer: ABB
• Color: Grey
• Dimensions: Width: 76.2mm, Height: 130mm, Depth: 70mm
• Insulation Voltage: 800V
• Operational Voltage: 690VAC / 500VDC
• Load Current (A): 40A
• Frequency: 50/60Hz
• Terminal Type: Fixed
• Number of Poles: 3P
• Standards Compliance: IEC certified
• Brand Origin: Germany
• Unit: Piece

The ABB XT1C-160-TMD-40-450 circuit breaker offers reliable protection with rapid response and durability in challenging environments.
