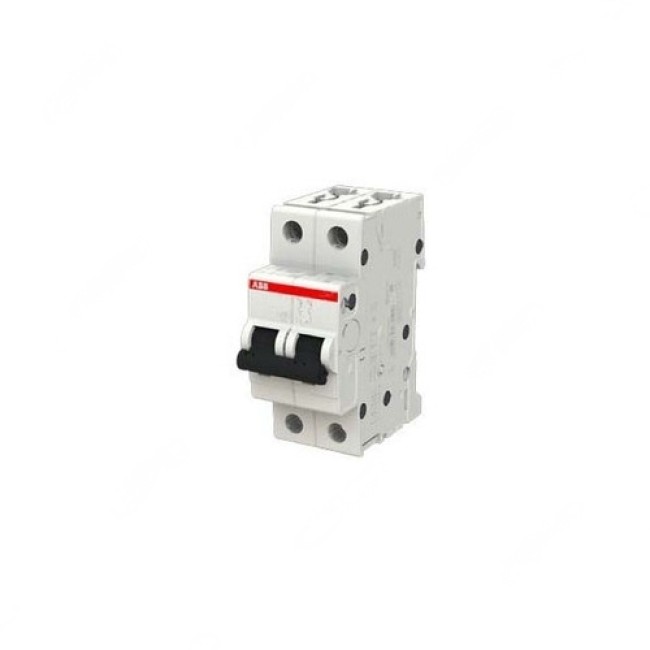

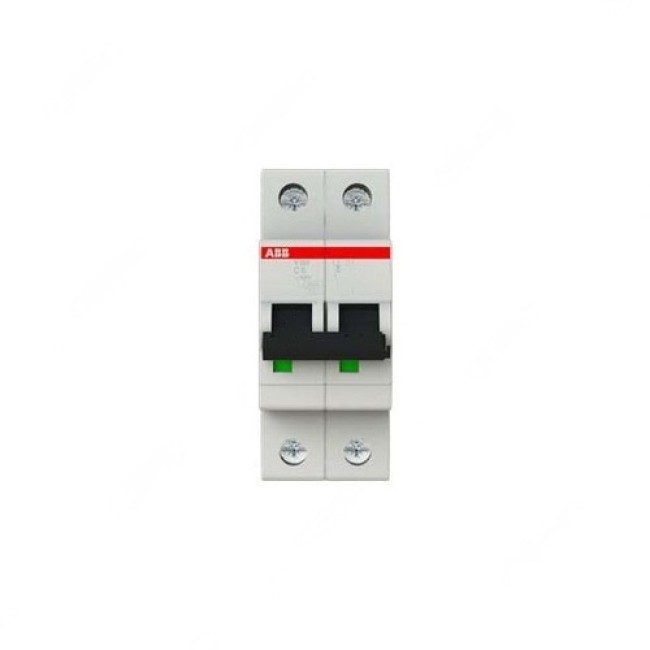

ABB Miniature Circuit Breaker, Curve Type C, 2 Pole, 6kA, 10A - S202-C10

Description for ABB Miniature Circuit Breaker, Curve Type C, 2 Pole, 6kA, 10A - S202-C10

The ABB S202-C10 Miniature Circuit Breaker (MCB) is designed for reliable circuit protection in electrical systems. It features current-limiting capabilities with dual tripping mechanisms: a delayed thermal tripping mechanism for overload protection and an electromechanical mechanism for short circuit protection. This 2-pole MCB is rated for a short-circuit capacity of 6kA, making it suitable for a wide range of applications.

Specifications:

• Item Name: Miniature Circuit Breaker
• Model: S202-C10
• Article Number: A1A2041
• Manufacturer: ABB
• Color: White
• Tripping Mechanisms: Thermal (overload protection), Electromechanical (short circuit protection)
• Rated Current (A): 10A
• Rated Short-Circuit Capacity (Icn): 6 kA (AC), 6 kA (DC), 6 kA (400 VAC)
• Torque: 2.8 Nm
• Wattage: 4.2W
• Power Indicator: Red On-Green Off
• Dimensions: 35 x 88 x 69mm
• Manufacture Part Number: 2CDS252001R0104
• Operating Temperature: -25°C to 55°C
• Storage Temperature: -40°C to 70°C
• Curve Type: C
• Frequency: 50-60Hz
• Voltage Rating: 440 VAC
• Reference Ambient Air Temperature: 30°C
• Brand Origin: Germany
• Unit: Piece
