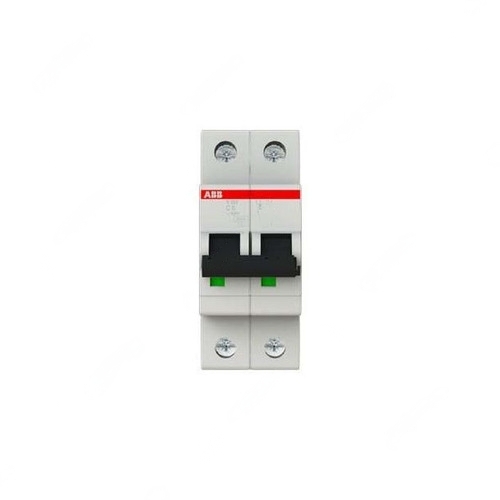

ABB Miniature Circuit Breaker, 40A, Type C Curve, 2-Pole, 6kA - S202-C40

Description for ABB Miniature Circuit Breaker, 40A, Type C Curve, 2-Pole, 6kA - S202-C40

The ABB S202-C40 Miniature Circuit Breaker (MCB) provides efficient current limiting protection with dual tripping mechanisms—delayed thermal tripping for overload protection and electromechanic tripping for short circuits. Built to operate reliably at an ambient temperature of 30°C, it has a short-circuit capacity of 6 kA across AC and DC, with a 440VAC rating supporting up to 40A. Designed in a compact 35 x 88 x 69mm form, this MCB is equipped with a red/green power indicator for clear status visibility. Ideal for industrial applications, it performs within -25°C to 55°C and is suitable for environments with storage temperatures ranging from -40°C to 70°C. This high-quality ABB circuit breaker offers robust protection for critical circuits.

Specifications:

• Model: S202-C40
• Part Number: 2CDS252001R0404
• Color: White
• Torque: 2.8 Nm
• Wattage: 9.6W
• Dimensions: 35 x 88 x 69 mm
• Frequency: 50-60Hz
• Operating Temperature: -25°C to 55°C
• Storage Temperature: -40°C to 70°C
• Brand Origin: Germany
