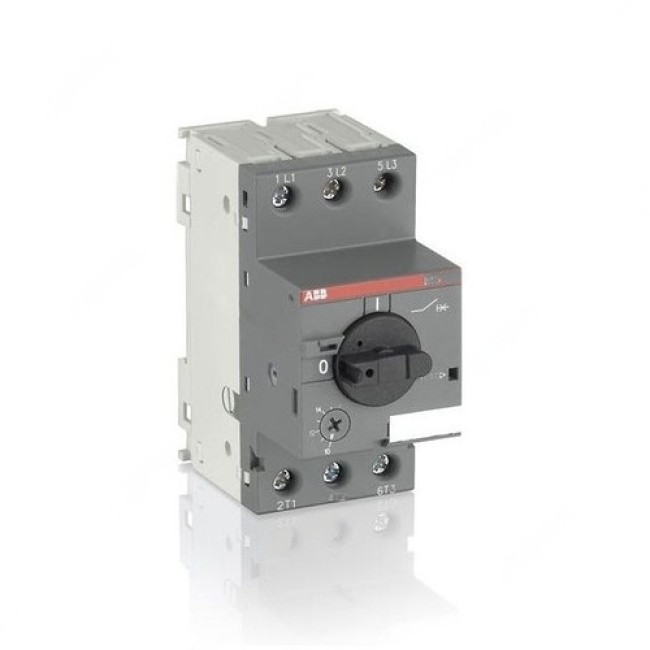

ABB Manual Motor Starter, 3 Phase, 16A - MS116-16

Description for ABB Manual Motor Starter, 3 Phase, 16A - MS116-16

The ABB MS116-16 Manual Motor Starter is a compact and reliable device designed to manually switch on and off motors while providing essential protection against short-circuits, overloads, and phase failures without the need for a fuse. With a width of just 45 mm and a rated operational current of 16.0 A, this manual motor starter is perfect for both three-phase and single-phase applications.

Key Features:

• Rated Service Short-Circuit Breaking Capacity: 16 kA at 400 VAC
• Trip Class: 10A
• Built-In Disconnect Function: For safe operation
• Temperature Compensation: Ensures reliable performance in varying conditions
• Trip-Free Mechanism: Allows the motor to continue running even if the starter is tripped
• Clear Switch Position Indication: Rotary handle for easy operation

Specifications:

• Item Name: Manual Motor Starter
• Model: MS116-16
• Manufacturer: ABB
• Operating Ambient Temperature: -25 to 70 °C
• Storage Temperature: -50 to 80 °C
• Insulation Voltage: 690 V
• Ingress Protection (IP Rating): IP20

Product Dimensions:

• Size: 85.6 L x 45 B x 90 H (cms)

Delivery Information:

• Unit: Piece

Accessories Available: Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, and locking devices for added protection against unauthorized changes.
