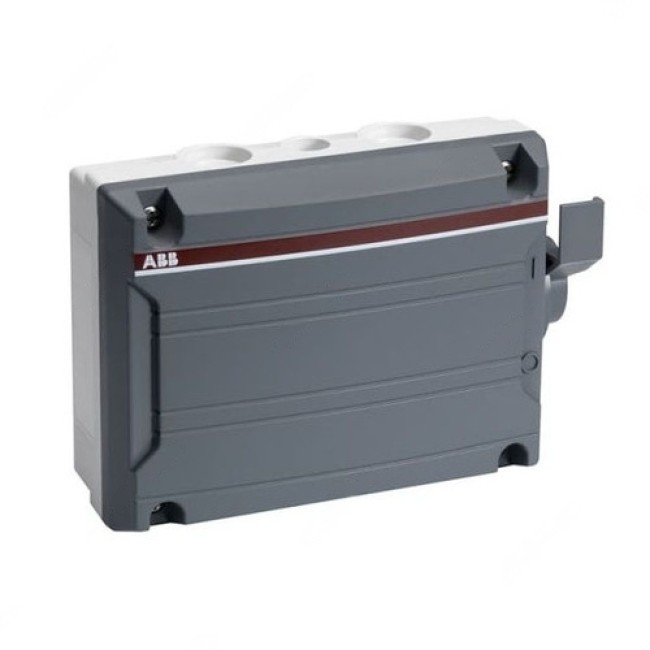

ABB Enclosed Switch Disconnector, 6P, 7.5 kW, 40A - BW640TPN

Description for ABB Enclosed Switch Disconnector, 6P, 7.5 kW, 40A - BW640TPN

The ABB BW640TPN Enclosed Switch Disconnector is designed with a robust polycarbonate enclosure that ensures durability in both outdoor and indoor environments. This switch is UV-protected and boasts an IP65 rating, providing reliable protection against low-pressure water jets. It features threaded cable entries with knock-out holes, allowing for the connection of 2 parallel cables from both the top and bottom. Additionally, membrane grommets (IP54) are included for enhanced sealing.

Engineered for a 5-wire system, the switch incorporates a fixed neutral terminal and a PE terminal, simplifying the installation process. The handle is pad lockable (compatible with one padlock) for safety, and the cover is interlocked. The terminals are designed for easy access, making installation quick and efficient.

• Rated Impulse Withstand Voltage: 8 kV
• Neutral Type: Fixed
• Screw Clamp: 0.75-10 sq.mm
• Cable Entry Position: Up/Down
• Impact Resistance: IK08
• Maximum Mounted Auxiliary Contacts: 2 NO, 0 NC
• Model: BW640TPN, Part Number: 2CMA142410R1000
• Voltage: 380-415V, Insulation Voltage: 690V
• Dimensions: 130mm (H) x 190mm (W) x 65mm (D)
• Current: 40A, Power: 7.5 kW
• Cross Section: 0.75-10 sq.mm
• Standards: IEC 60947-1

This switch disconnector is ideal for industrial applications, ensuring a reliable and efficient solution for electrical distribution needs.
