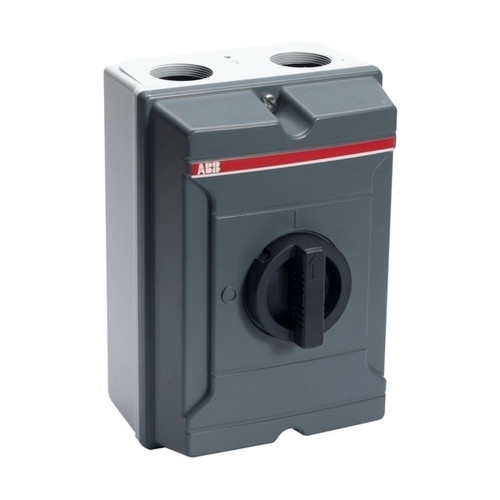

ABB Enclosed Switch Disconnector, 3P, 45 kW, 100A - KSE3100TPN

Description for ABB Enclosed Switch Disconnector, 3P, 45 kW, 100A - KSE3100TPN

The ABB KSE3100TPN Enclosed Switch Disconnector is crafted for durability in harsh environments, featuring a robust die-cast aluminum alloy (silumin) enclosure with a corrosion-resistant polyester coating. Its design ensures easy installation, with accessible terminals, a screwed cover, and grommet-style cable glands. The interlocked cover and padlockable handle provide secure operation, with the option to lock the handle in the "On" position. N and PE terminals are included, enhancing flexibility for various applications.

• Rated Short-Circuit Making Capacity: 3.6 kA
• Cable Entries: 2x M40/2x M40+M16 (up/down)
• Neutral Type: Fixed
• Impact Resistance: IK07
• Model: KSE3100TPN, Part Number: 2CMA144585R1000
• Voltage: 380-415V, Insulation Voltage: 750V
• Dimensions: 230mm (H) x 160mm (W) x 118mm (D)
• Current: 100A, Power: 45 kW
• Cross Section: 10-70 sq.mm
• Standards: IEC 60947-1

Designed to withstand challenging industrial conditions, this switch disconnector ensures safe and reliable performance.
