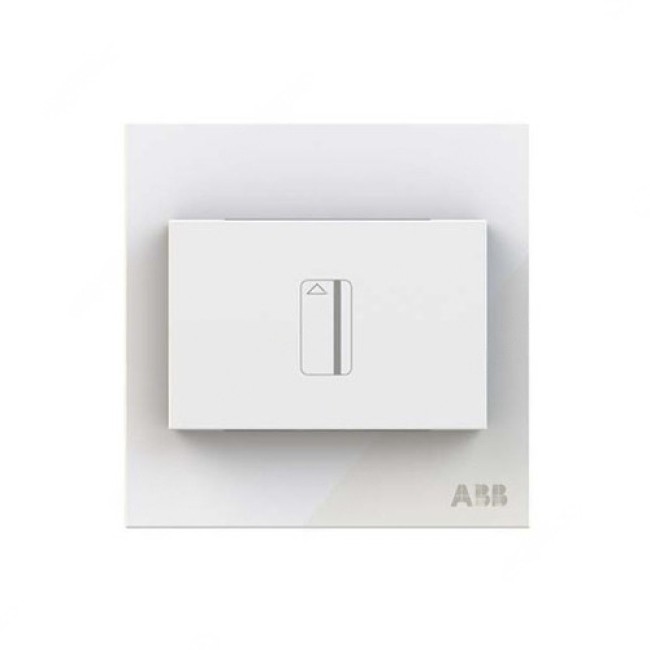

ABB Electronic Card Switch With Timer, Millenium, 16A, White Glass- AM40544-WG

Description for ABB Electronic Card Switch With Timer, Millenium, 16A, White Glass- AM40544-WG

The ABB AM40544-WG Electronic Card Switch with Timer from the Millenium series combines style and functionality with its sleek white glass finish. This 16A switch operates at 250VAC and features a time relay adjustable between 5 and 90 seconds. It is designed to support cards up to 54mm in width and has a minimum switching capacity of 3000W. The switch also includes an indication LED for easy status monitoring, providing both convenience and energy efficiency for users.

Key Features:

• Model: AM40544-WG
• Material: Metal with white glass finish
• Current Rating: 16A
• Voltage: 250VAC
• Time Relay: Adjustable between 5-90 seconds
• Minimum Switching Capacity: 3000W
• Indication LED: For status monitoring
• Mounting Type: Flush
• Dimensions: Height 102mm, Width 62mm, Depth 102mm
• Connection Type: Screw
• Temperature Range: Operating: -5 to 35°C, Storage: -5 to 50°C
• Frequency: 50Hz
