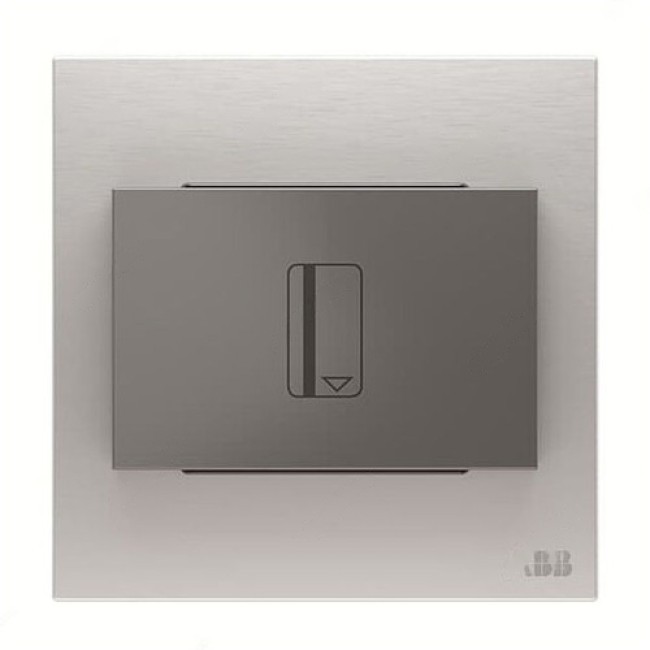

ABB Electronic Card Switch With Timer, Millenium, 16A, Stainless Steel - AM40544-ST

Description for ABB Electronic Card Switch With Timer, Millenium, 16A, Stainless Steel - AM40544-ST

The ABB AM40544-ST Electronic Card Switch with Timer combines functionality and style, making it an ideal solution for energy-efficient power control in commercial settings such as hotels and offices. Crafted with a sleek stainless steel finish, this card switch supports cards up to 54 mm in width and features a timer relay adjustable between 5 to 90 seconds, ensuring optimal power management. The built-in indication LED enhances visibility, while the robust metal construction guarantees durability. This 16A, 250VAC card switch is easy to install with flush mounting and a screw connection, providing reliable performance and modern aesthetics.

Key Features:

• Model: AM40544-ST
• Color: Stainless Steel
• Rated Amperage: 16A
• Voltage: 250VAC
• Card Compatibility: Up to 54 mm width
• Time Relay Range: 5-90 seconds
• Minimum Switching Capacity: 3000W
• Mounting Type: Flush
• Connection Type: Screw
• Material: Metal with indication LED
• Operating Temperature: -5 to 35°C
• Storage Temperature: -5 to 50°C
• Dimensions: 102mm (H) x 62mm (W) x 102mm (D)
