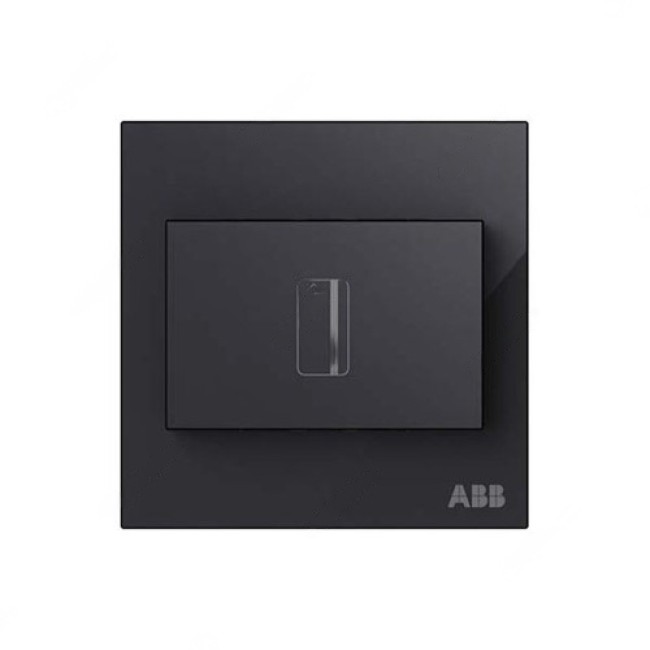

ABB Electronic Card Switch With Timer, Millenium, 16A, Black Glass - AM40544-BG

Description for ABB Electronic Card Switch With Timer, Millenium, 16A, Black Glass - AM40544-BG

The ABB AM40544-BG Electronic Card Switch with Timer from the Millenium series is a sleek and functional solution for controlling electrical devices with precise timing. Featuring a modern black glass finish, this 16A switch is designed to operate at 250VAC and includes a built-in timer that can be set between 5 to 90 seconds. It is ideal for controlling cards up to 54mm in width and offers a minimum switching capacity of 3000W. The switch also comes with an indication LED for easy status monitoring.

Key Features:

• Model: AM40544-BG
• Material: Metal with black glass finish
• Current Rating: 16A
• Voltage: 250VAC
• Time Relay: Adjustable between 5-90 seconds
• Minimum Switching Capacity: 3000W
• Indication LED: For status monitoring
• Mounting Type: Flush
• Dimensions: Height 102mm, Width 62mm, Depth 102mm
• Connection Type: Screw
• Temperature Range: Operating: -5 to 35°C, Storage: -5 to 50°C
• Frequency: 50Hz
