ABB Electronic Bell with Half/Double Rocker Frame, Millenium, 2 Module, 1 Gang, 0.2A, 2 Pcs/Set - AMD24144-AN + AMD5144-ST
- Condition: New
Description for ABB Electronic Bell with Half/Double Rocker Frame, Millenium, 2 Module, 1 Gang, 0.2A, 2 Pcs/Set - AMD24144-AN + AMD5144-ST

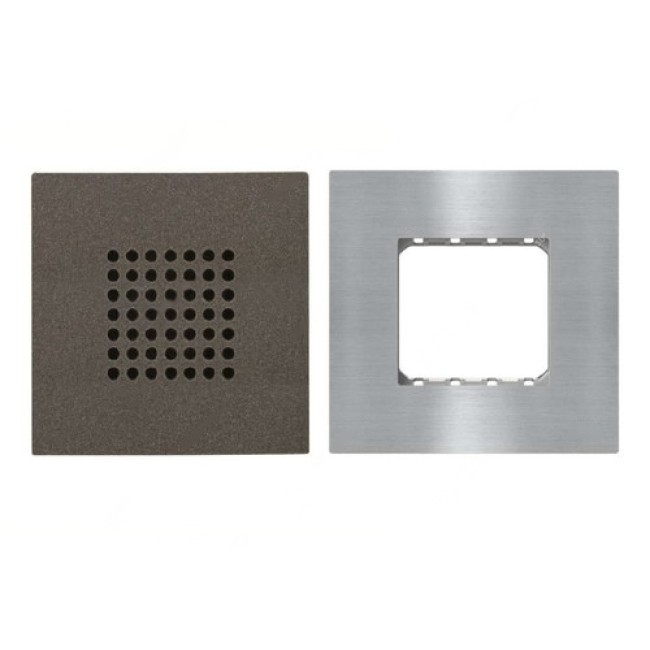

The ABB AMD24144-AN Modular Electronic Bell paired with the AMD5144-ST Half/Double Rocker Frame offers a sleek and high-performance bell solution in the Millenium Series. This set combines an elegant anthracite bell with a refined stainless steel rocker frame, perfect for modern interiors.
The ABB AMD24144-AN Electronic Bell delivers a clear 76 dB sound level at 1 meter with selectable melodies and operates at a rated voltage of 230VAC with a 0.2A power draw. Constructed from durable thermoplastic, it supports flush mounting and is protected with an IP20 rating.
The ABB AMD5144-ST Rocker Frame is crafted from high-quality stainless steel with a glossy finish and includes a metal mounting plate. Suitable for both horizontal and vertical installations, it complements any sophisticated decor with its clean and polished look.
Key Features:
- Item Name: Electronic Bell
- Model: AMD24144-AN + AMD5144-ST
- Product Series: Millenium
- Manufacturer: ABB
- Number of Gangs: 1
- Rated Voltage: 230VAC
- Frequency: 50-60 Hz
- Power Consumption: 0.2A
- Sound Level: 76 dB
- Color (Bell): Anthracite
- Material (Bell): Thermoplastic
- Color (Frame): Stainless Steel
- Material (Frame): Stainless Steel
- Frame Finish: Glossy
- Mounting Type: Flush Mounted (plaster)
- Mounting Orientation (Frame): Horizontal, Vertical
- Degree of Protection: IP20
- Dimensions (Bell): Width 81mm, Height 47mm, Length 294mm
- Dimensions (Frame): Width 86mm, Height 86mm, Depth 4mm
- Operating Temperature Range: -5°C to 35°C
- Storage Temperature Range: -5°C to 50°C
- Items Included: 1x ABB AMD24144-AN Modular Electronic Bell, 1x ABB AMD5144-ST Half/Double Rocker Frame
- Unit: Set
