ABB Electronic Bell with Half/Double Rocker Frame, Millenium, 2 Module, 1 Gang, 0.2A, 2 Pcs/Set - AMD24144-AN + AMD5144-SB
- Condition: New
Description for ABB Electronic Bell with Half/Double Rocker Frame, Millenium, 2 Module, 1 Gang, 0.2A, 2 Pcs/Set - AMD24144-AN + AMD5144-SB

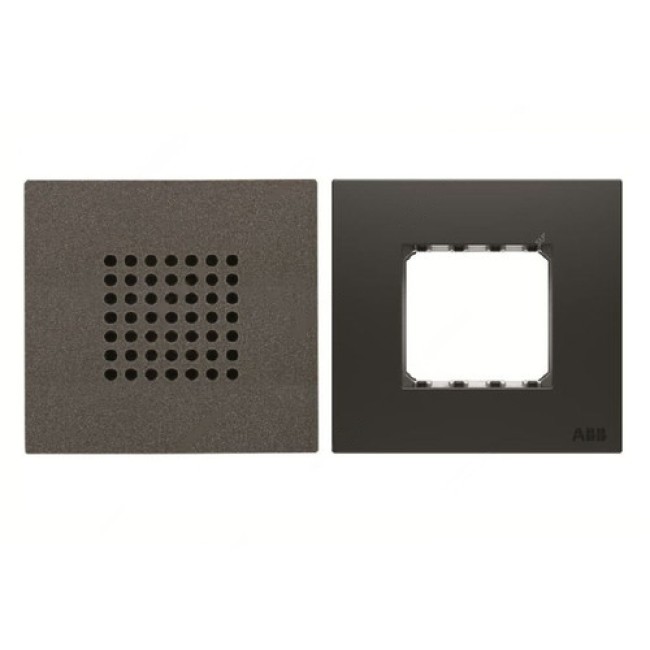

The ABB AMD24144-AN Modular Electronic Bell paired with the AMD5144-SB Half/Double Rocker Frame offers a sleek, modern acoustic solution from the Millenium Series. Featuring a premium anthracite electronic bell and a sophisticated silk black frame, this set adds elegance and functionality to any setting.
The ABB AMD24144-AN Electronic Bell delivers a powerful 76 dB sound at 1 meter, with four selectable melodies for versatile acoustic options. It operates at 230VAC, 50-60 Hz, with a 0.2A power consumption. Built with durable thermoplastic, the bell is flush-mounted and has an IP20 protection rating.
The ABB AMD5144-SB Rocker Frame in silk black is crafted from glossy stainless steel, providing a chic and sturdy finish. It includes a metal mounting plate and can be installed in both horizontal and vertical orientations for flexible design compatibility.
Key Features:
- Item Name: Electronic Bell
- Model: AMD24144-AN + AMD5144-SB
- Product Series: Millenium
- Manufacturer: ABB
- Number of Gangs: 1
- Rated Voltage: 230VAC
- Frequency: 50-60 Hz
- Power Consumption: 0.2A
- Sound Level: 76 dB
- Color (Bell): Anthracite
- Material (Bell): Thermoplastic
- Color (Frame): Silk Black
- Material (Frame): Stainless Steel
- Frame Finish: Glossy
- Mounting Type: Flush Mounted (plaster)
- Mounting Orientation (Frame): Horizontal, Vertical
- Degree of Protection: IP20
- Dimensions (Bell): Width 81mm, Height 47mm, Length 294mm
- Dimensions (Frame): Width 86mm, Height 86mm, Depth 4mm
- Operating Temperature Range: -5°C to 35°C
- Storage Temperature Range: -5°C to 50°C
- Items Included: 1x ABB AMD24144-AN Modular Electronic Bell, 1x ABB AMD5144-SB Half/Double Rocker Frame
- Unit: Set
