ABB Electronic Bell with Half/Double Rocker Frame, Millenium, 2 Module, 1 Gang, 0.2A, 2 Pcs/Set - AMD24144-AN + AMD5144-MG
- Condition: New
Description for ABB Electronic Bell with Half/Double Rocker Frame, Millenium, 2 Module, 1 Gang, 0.2A, 2 Pcs/Set - AMD24144-AN + AMD5144-MG

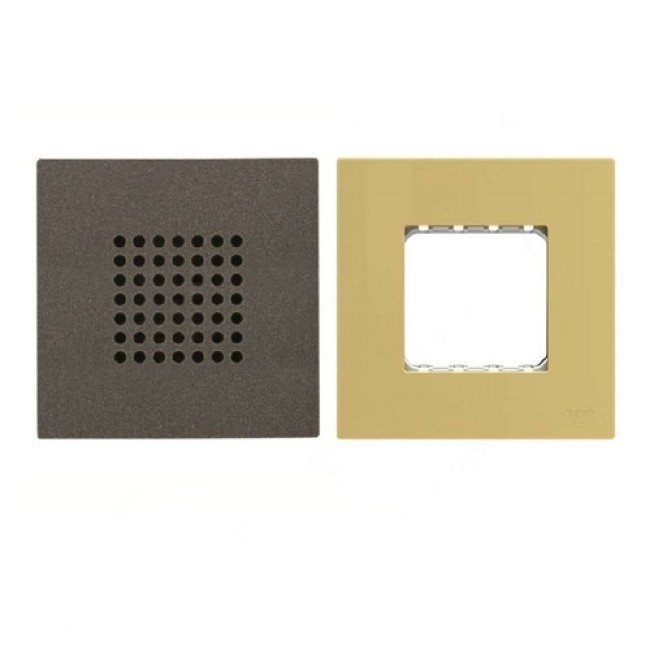

The ABB AMD24144-AN Modular Electronic Bell combined with the elegant AMD5144-MG Half/Double Rocker Frame in Matt Gold offers premium performance and style for modern interiors. This set from ABB’s Millenium Series features an anthracite-colored bell unit and a stylish matt gold frame, delivering both aesthetic appeal and functionality.
The ABB AMD24144-AN Electronic Bell is designed for reliable acoustic performance, emitting a sound level of 76 dB at 1 meter with a cover plate. It operates on 230VAC at 50-60 Hz and includes four melody options, allowing customization for any environment. With IP20 protection and a robust thermoplastic build, it is both durable and stylish.
The ABB AMD5144-MG Rocker Frame adds a touch of sophistication with its matt gold finish on glossy stainless steel. It includes a metal mounting plate and supports horizontal or vertical installation for flexible design integration.
Key Features:
- Item Name: Electronic Bell
- Model: AMD24144-AN + AMD5144-MG
- Product Series: Millenium
- Manufacturer: ABB
- Number of Gangs: 1
- Rated Voltage: 230VAC
- Frequency: 50-60 Hz
- Power Consumption: 0.2A
- Sound Level: 76 dB
- Color (Bell): Anthracite
- Material (Bell): Thermoplastic
- Color (Frame): Matt Gold
- Material (Frame): Stainless Steel
- Frame Finish: Glossy
- Mounting Type: Flush Mounted (plaster)
- Mounting Orientation (Frame): Horizontal, Vertical
- Degree of Protection: IP20
- Dimensions (Bell): Width 81mm, Height 47mm, Length 294mm
- Dimensions (Frame): Width 86mm, Height 86mm, Depth 4mm
- Operating Temperature Range: -5°C to 35°C
- Storage Temperature Range: -5°C to 50°C
- Items Included: 1x ABB AMD24144-AN Modular Electronic Bell, 1x ABB AMD5144-MG Half/Double Rocker Frame
