ABB Electronic Bell with Half/Double Rocker Frame, Millenium, 2 Module, 1 Gang, 0.2A, 2 Pcs/Set - AMD24144-AN + AMD5144-DU

Description for ABB Electronic Bell with Half/Double Rocker Frame, Millenium, 2 Module, 1 Gang, 0.2A, 2 Pcs/Set - AMD24144-AN + AMD5144-DU

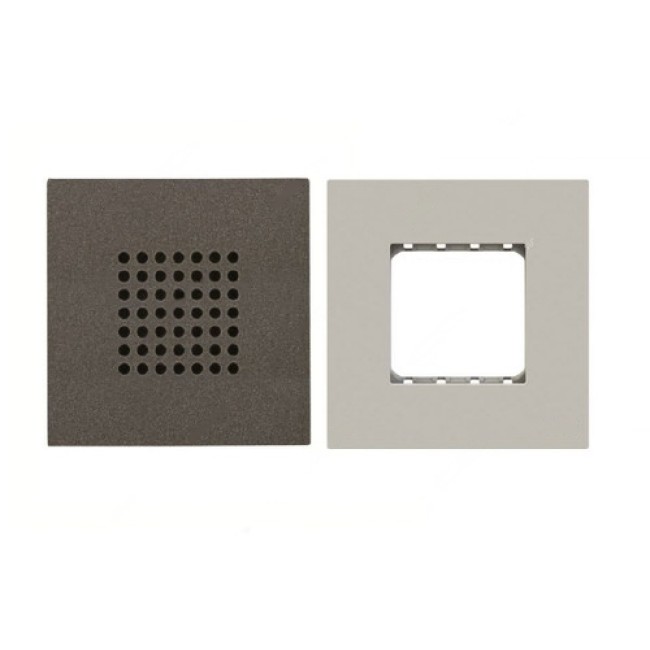

The ABB AMD24144-AN Modular Electronic Bell with the AMD5144-DU Half/Double Rocker Frame combines exceptional acoustic performance with a sophisticated design. This 2-piece set, part of the Millenium Series, offers a modern look with an anthracite-toned bell and a stylish dune sand rocker frame, perfect for any contemporary space.

The ABB AMD24144-AN Electronic Bell features four selectable melodies and emits a clear sound level of 76 dB at 1 meter, powered at 230VAC with a 0.2A current draw. Constructed from high-quality thermoplastic, it offers flush mounting for a seamless installation and IP20 protection.

Complementing the bell, the ABB AMD5144-DU Rocker Frame in dune sand is crafted with a glossy stainless steel finish and includes a sturdy metal mounting plate. It supports both horizontal and vertical orientations, adding a touch of elegance to your interior setup.

Key Features:

• Item Name: Electronic Bell
• Model: AMD24144-AN + AMD5144-DU
• Product Series: Millenium
• Manufacturer: ABB
• Number of Gangs: 1
• Rated Voltage: 230VAC
• Frequency: 50-60 Hz
• Power Consumption: 0.2A
• Sound Level: 76 dB
• Color (Bell): Anthracite
• Material (Bell): Thermoplastic
• Color (Frame): Dune Sand
• Material (Frame): Stainless Steel
• Frame Finish: Glossy
• Mounting Type: Flush Mounted (plaster)
• Mounting Orientation (Frame): Horizontal, Vertical
• Degree of Protection: IP20
• Dimensions (Bell): Width 81mm, Height 47mm, Length 294mm
• Dimensions (Frame): Width 86mm, Height 86mm, Depth 4mm
• Operating Temperature Range: -5°C to 35°C
• Storage Temperature Range: -5°C to 50°C
• Items Included: 1x ABB AMD24144-AN Modular Electronic Bell, 1x ABB AMD5144-DU Half/Double Rocker Frame
• Unit: Set
