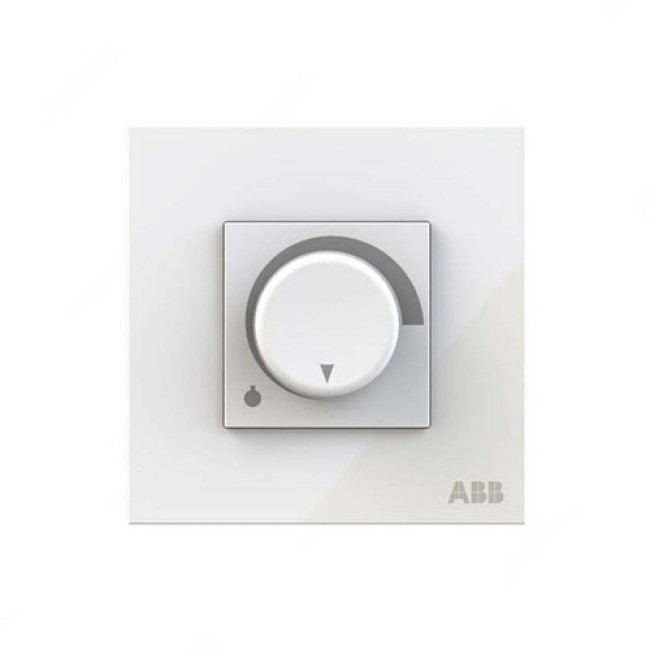

ABB Basic Rotary Dimmer With Frame, 1 Gang, 400W, White Glass - AM41344-WG

Description for ABB Basic Rotary Dimmer With Frame, 1 Gang, 400W, White Glass - AM41344-WG

The ABB AM41344-WG Basic Rotary Dimmer offers elegant functionality with its white glass finish. Designed for resistive load applications, this dimmer allows precise control over your lighting system, ideal for incandescent and halogen lamps. With a maximum power rating of 400W for incandescent lamps and 300VA for halogen lamps with ferromagnetic transformers, the dimmer includes a frame and metal support for easy flush mounting.

Key Features:

• Rotary Dimmer (AM41344-WG):

  • Max Power: 400W for incandescent lamps
  • Halogen lamps with ferromagnetic transformers: 300 VA
  • Actuator Type: Turn button
  • Load Type: Resistive load
  • Voltage: 250V
  • Frequency: 50 Hz
  • Operating Temperature: 0 to 30°C
  • Storage Temperature: -5 to 50°C
  • Connection Type: Screw
  • Mounting Type: Flush
  • Material: Metal, Color: White Glass
  • Safety Class: IP20
  • Includes frame and metal support for secure installation

• Specifications:

  • Height: 62mm, Depth: 102mm, Width: 102mm
  • Ambient Temperature Range: -5 to 35°C
  • Product Series: Millenium

Items Included:

• 1x ABB AM41344-WG Rotary Dimmer
• Frame and metal support
