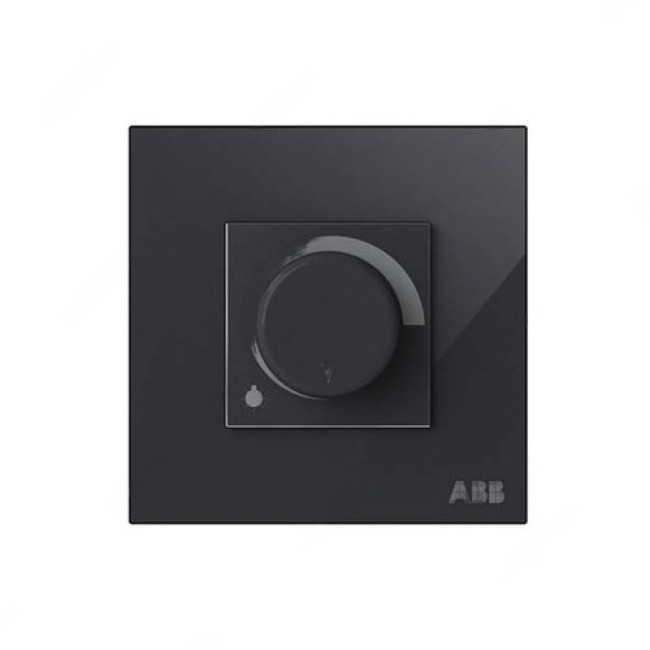

ABB Basic Rotary Dimmer With Frame, 1 Gang, 400W, Black Glass - AM41344-BG

Description for ABB Basic Rotary Dimmer With Frame, 1 Gang, 400W, Black Glass - AM41344-BG

The ABB AM41344-BG Basic Rotary Dimmer combines sleek design with reliable functionality. Featuring a black glass finish and a robust metal construction, this dimmer offers precise control over lighting for resistive load applications. Ideal for controlling halogen and incandescent lamps, it can support up to 400W of power. The dimmer includes a frame and metal support for easy installation in flush-mounted settings.

Key Features:

• Rotary Dimmer (AM41344-BG):

  • Max Power: 400W for incandescent lamps
  • Halogen lamps with ferromagnetic transformers: 300 VA
  • Actuator Type: Turn button
  • Load Type: Resistive load
  • Voltage: 250V
  • Frequency: 50 Hz
  • Operating Temperature: 0 to 30°C
  • Storage Temperature: -5 to 50°C
  • Connection Type: Screw
  • Mounting Type: Flush
  • Material: Metal, Color: Black Glass
  • Safety Class: IP20
  • Includes frame and metal support for secure installation

• Specifications:

  • Height: 62mm, Depth: 102mm, Width: 102mm
  • Ambient Temperature Range: -5 to 35°C
  • Product Series: Millenium

Items Included:

• 1x ABB AM41344-BG Rotary Dimmer
• Frame and metal support
