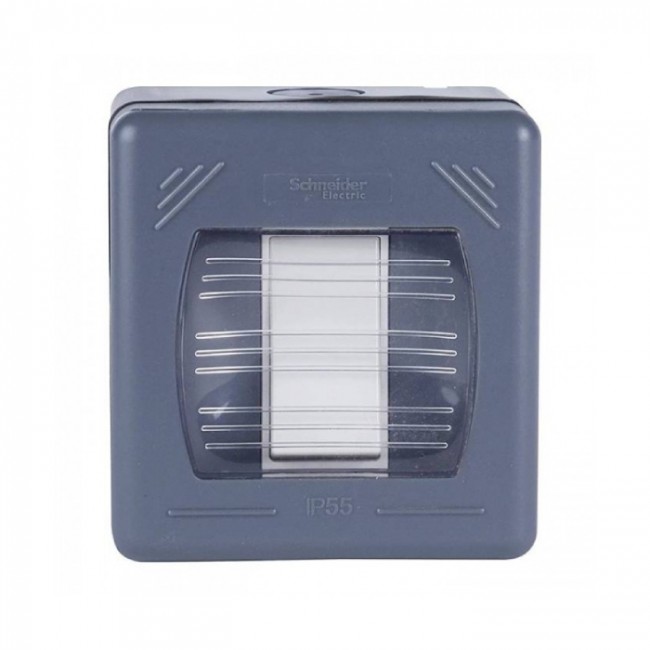

Schneider Electric Weatherproof Light Switch Exclusive Intermediate 10A 1 Gang Switch GWP1614
Exclusive - intermediate switch - 1 gang - 10 AX
Model :GWP1614
SKU :GWP1614
7 days retun policy available
Cash on Delivery available
- Condition: New
Description for Schneider Electric Weatherproof Light Switch Exclusive Intermediate 10A 1 Gang Switch GWP1614
Schneider Electric Weatherproof Light Switch Exclusive Intermediate 10A 1 Gang Switch GWP1614
For general weatherproof protection against dust and liquids, the IP55 range of switches and sockets offers an effective solution for both indoor and outdoor environments when the maximum IP66 rating is not required.
-Manufactured from tough, durable thermoplastic
-The switch can be operated through the membrane, allowing it to maintain its full IP rating.

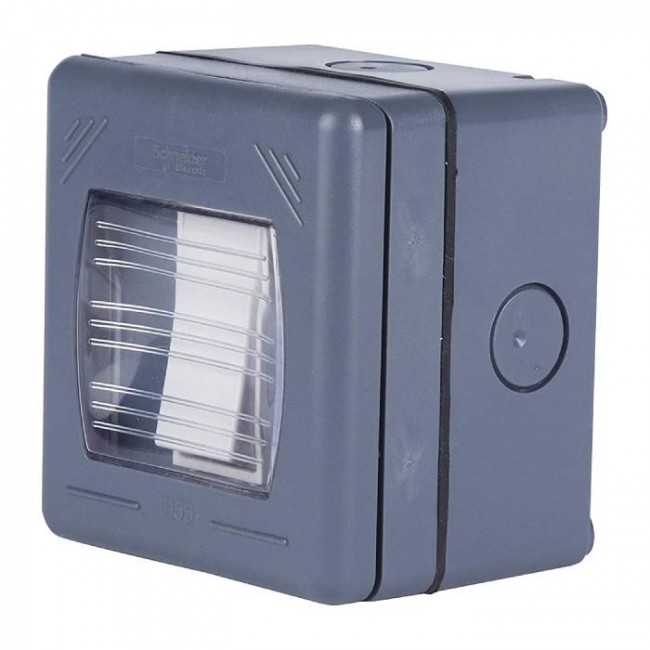

-The enclosure comes with standard 20 mm conduit entry knockouts with an additional cut-out facility to convert to 25 mm conduit entry
Specifications
| product or component type | Switch | |
|---|---|---|
| device presentation | Complete product | |
| colour tint | Grey | |
| quantity per set | Set of 1 |
| switch function | Intermediate | |
|---|---|---|
| control type | Rocker | |
| number of gangs | 1 gang | |
| pilot light | without neon indicator | |
| device mounting | Wall mounted | |
| rated current | 10 AX at 230 V AC | |
| connections - terminals | Screw terminals | |
| material | Thermoplastic | |
| surface finish | Matt | |
| height | 85 mm | |
| width | 85 mm | |
| depth | 60 mm | |
| product weight | 0.181 kg |
| standards | BS EN 60669-1 | |
|---|---|---|
| IP degree of protection | IP55 |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 182 g | |
| Package 1 Height | 9 cm | |
| Package 1 width | 7.5 cm | |
| Package 1 Length | 9.8 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | REACh Declaration | |
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | Yes | |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure | Product Environmental Profile | |
| Circularity Profile | End of Life Information |
| Warranty | 18 months |
|---|
